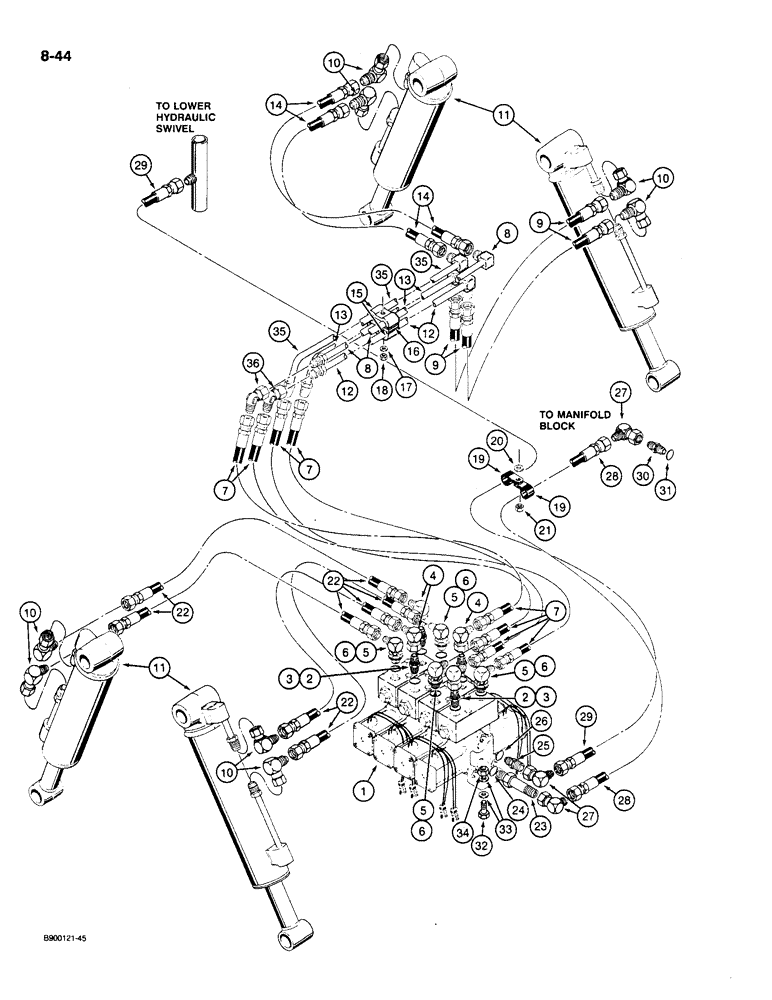

Запчасти Case 1085C (8-044) - FRONT AND REAR OUTRIGGER HYDRAULICS, USED ON MODELS WITH FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS

1

1978104C1

VALVE

ASSEMBLY - outrigger control, four spool, parts list Figure: 8-050

1шт.

2

S243527

FITTING

ADAPTER - straight, special, Includes: Ref. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 deg swivel, 7/8-14 inch flare x fem flare swivel, Includes Ref. 6

4шт.

5

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj, 7/8-14 flare x 3/4-16 inch O-ring, Includes: Ref. 6

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

HOSE ASSY, 12.70 mm ID x 939.80 mm, SAE 100R2A, At Control Valve

4шт.

8

S517951

TUBE ASSY.

TUBE - intermediate, to rod end of front left-hand cylinder

1шт.

9

S243266

HOSE

- 407 mm long, to front right-hand cylinder

2шт.

10

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 deg, 7/8-14 fl x 1-1/16-12 inch fem flare swivel

8шт.

11

G105017

CYLINDER

ASSEMBLY - outrigger, parts list Figure: 8-096

4шт.

12

S517950

TUBE ASSY.

TUBE - intermediate, to rod end of front right-hand cylinder

1шт.

13

S517952

TUBE ASSY.

TUBE - intermediate, to closed end of front right-hand cylinder

1шт.

14

S243267

HOSE

- 1066 mm long, to front left-hand cylinder

2шт.

15

S45067

CLAMP

- tube

4шт.

16

H285346

PLATE

- tube clamp

2шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

18

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

19

R14668

CLAMP

- hose

4шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Hardened 1/2", SAE

2шт.

21

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

22

S243267

HOSE

- 1066 mm long, rear cylinders

4шт.

23

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Includes: Ref. 23 and 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 26

1шт.

27

218-5378

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 deg sw, 7/8-14 flare x 3/4-16 inch fem flare sw

3шт.

28

S243634

HOSE ASSY.

HOSE - 56 inch, at control valve to manifold block

1шт.

29

S243742

HOSE ASSY.

HOSE - 60 inch, at control valve to lower hydraulic swivel

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

34

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

35

S517953

TUBE ASSY.

TUBE - intermediate, to closed end of front left-hand cylinder

1шт.

36

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 deg, 7/8-14 inch flare x swivel straight thread

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
