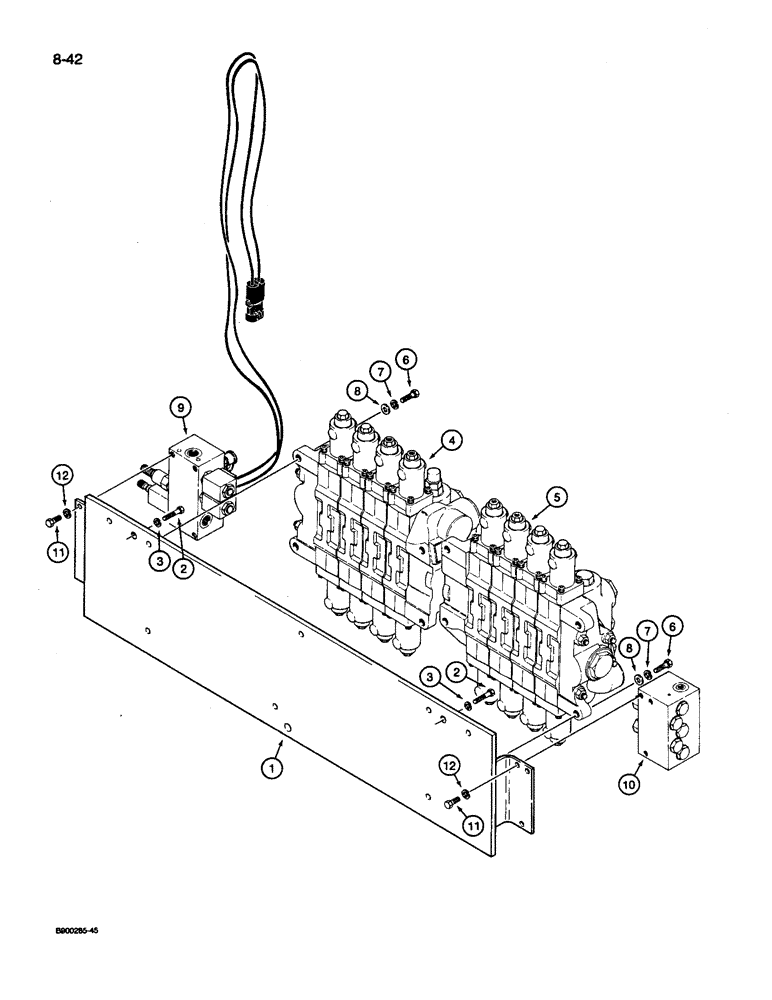

Запчасти Case 1085C (8-042) - MAIN HYDRAULIC CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

S517812

PLATE

BRACKET - control valve mounting

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-018

1шт.

5

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-016

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

8

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

6шт.

9

S517926

VALVE

ASSEMBLY - pilot manifold, parts list Figure: 8-040

1шт.

10

S517719

VALVE

ASSEMBLY - high-speed, parts list Figure: 8-038

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
