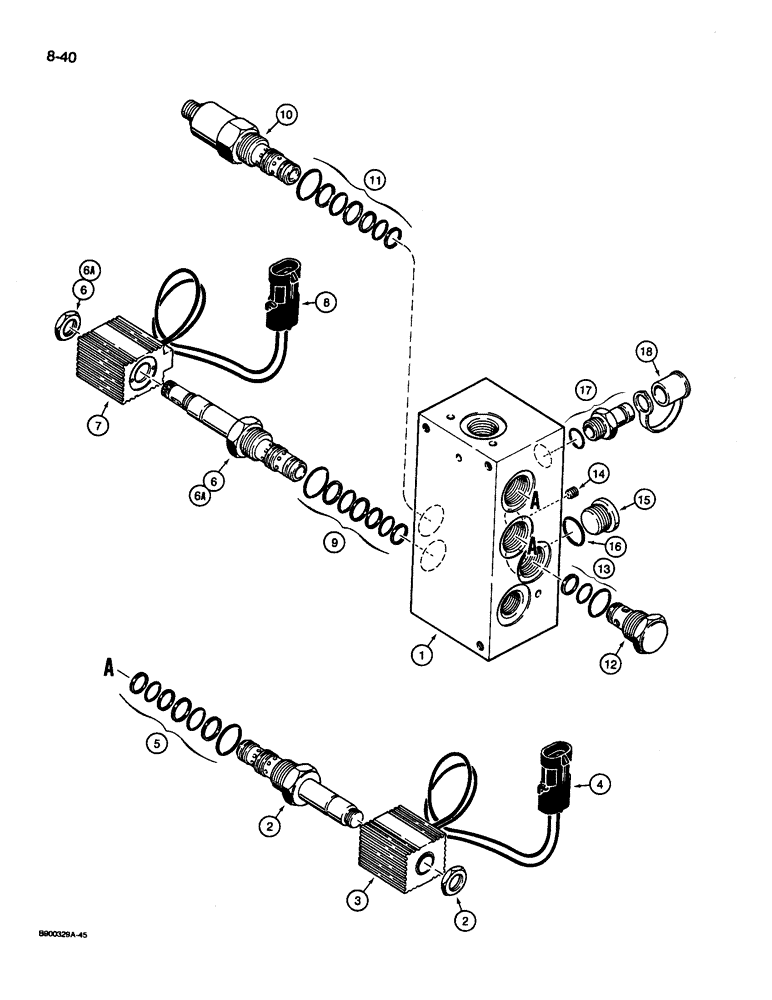

Запчасти Case 1085C (8-040) - PILOT MANIFOLD VALVE ASSEMBLY (08) - HYDRAULICS

S517926

VALVE

ASSEMBLY - pilot manifold, Parker Hannifin No. HFC32294D, no longer available, when replacing complete valve, order S518001 valve, Includes: Ref. 1 - 18

1шт.

S518001

VALVE

ASSEMBLY - pilot manifold, Parker Hannifin No. HFC32294E, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - manifold

1шт.

S301175

CARTRIDGE

VALVE ASSEMBLY - directional control, 2 position, 3 way, Includes: Ref. 2 - 5

2шт.

2

S301195

CARTRIDGE

VALVE - solenoid, 2 position, 3 way, includes nut

1шт.

3

S301196

COIL

- solenoid

1шт.

4

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

5

S301181

SEAL KIT

- seal, S301175 valve

1шт.

S301176

CARTRIDGE

VALVE ASSEMBLY - directional control, 2 position, 3 way, used with S517926 pilot manifold valve, Includes: Ref. 6 - 9

1шт.

S301689

SOLENOID

VALVE ASSEMBLY - directional control, 2 position, 3 way, used with S518001 pilot manifold valve, Includes: Ref. 6 - 9

1шт.

6

S301195

CARTRIDGE

VALVE - solenoid, 2 position, 3 way, includes nut, used with S301176 directional valve

1шт.

6a

S301690

CARTRIDGE

VALVE - solenoid, 2 position, 3 way, includes nut, used with S301689 directional valve

1шт.

7

S301196

COIL

- solenoid

1шт.

8

S301197

SEAL PACKAGE

CONNECTOR - electrical, coil

1шт.

9

S301181

SEAL KIT

- seal, S301176 and S301689 valves

1шт.

10

S301177

VALVE

- relief, Includes: Ref. 11

1шт.

11

S301181

SEAL KIT

- seal, S301177 relief valve

1шт.

12

N13188

VALVE

- check, Includes: Ref. 13

1шт.

13

S301182

SEAL KIT

- seal, N13188 check valve

1шт.

14

S301179

ORIFICE

PLUG - orifice

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 16 Hex Soc, 3/4"-16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

S301180

FITTING

COUPLING - quick disconnect, includes O-ring

1шт.

18

H434163

DUST CAP

CAP - coupler, dust

1шт.
