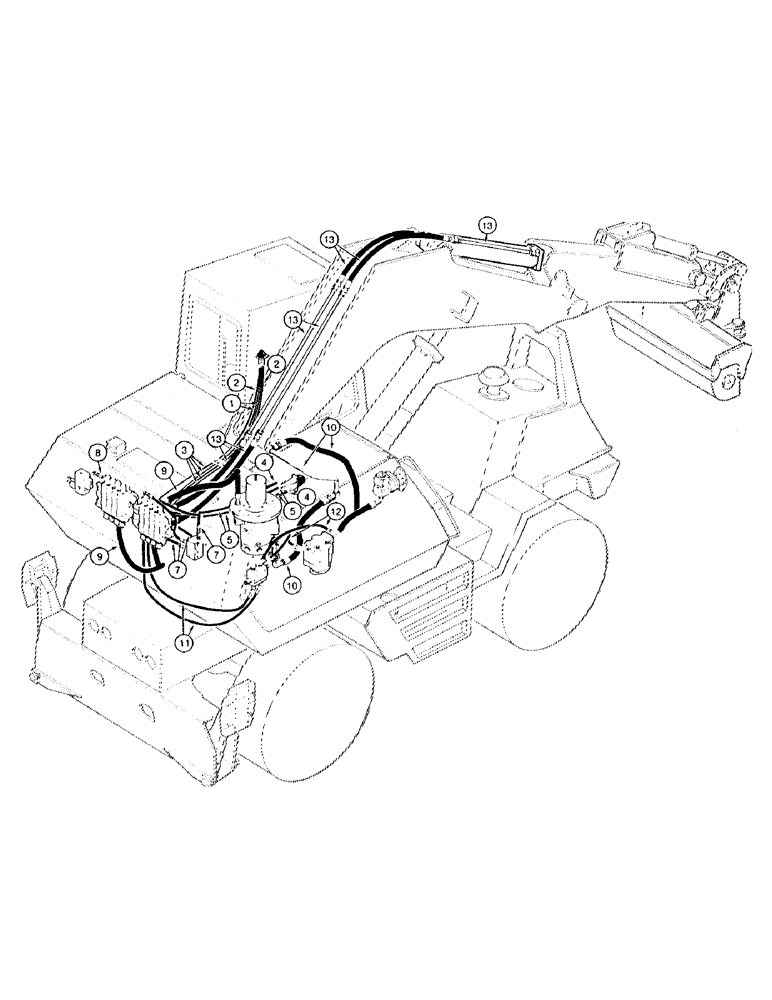

Запчасти Case 1085C (1-16) - PICTORIAL INDEX, ARM AND SWING VALVE HYDRAULIC CIRCUIT, LEFT-HAND HAND AND FOOT CONTROLS (00) - PICTORIAL INDEX

1

Hoses from Left-Hand Hand Control Valve to Crosses under the Cab Floor Plate, Page 8-101

1шт.

2

Hoses from Left-Hand Hand Control Valve to Hoses under the Cab Floor Plate, Page 8-101

1шт.

3

Hoses to Inlet and Outlet Sections of the Arm and Swing Control Valve from the Left-Hand Hand Control Valve, Page 8-101

1шт.

4

Hoses from Foot Control Valve to Crosses under Cab Floorplate, Page 8-105

1шт.

5

Hoses from Foot Control Valve to Auxiliary Section of the Arm and Swing Control Valve, Page 8-105

1шт.

7

Hoses from Swing and Arm Control Valve to High Speed Valve, Page 8-111

1шт.

8

Hose from High Speed Auxiliary Section to Pilot Manfiold Valve, Page 8-111

1шт.

9

Hoses from High Speed Auxiliary Section of Boom and Tool Control Valve and Inlet Section of Arm and Swing Control Valve to Lower Hydraulic Swivel, Port No. 3, Page 8-11

1шт.

10

Hoses and Tubes from Arm and Swing Pump to Lower Hydraulic Swivel Port No. 3, Page 8-9

1шт.

11

Hoses from Swing Motor Section to Swing Crossover Relief Valve, Page 8-53

1шт.

12

Hoses from Swing Crossover Relief Valve to Swing Motor, Page 8-53

1шт.

13

Hoses and Tubes from Arm Section of Arm Cylinders, Page 8-65

1шт.
