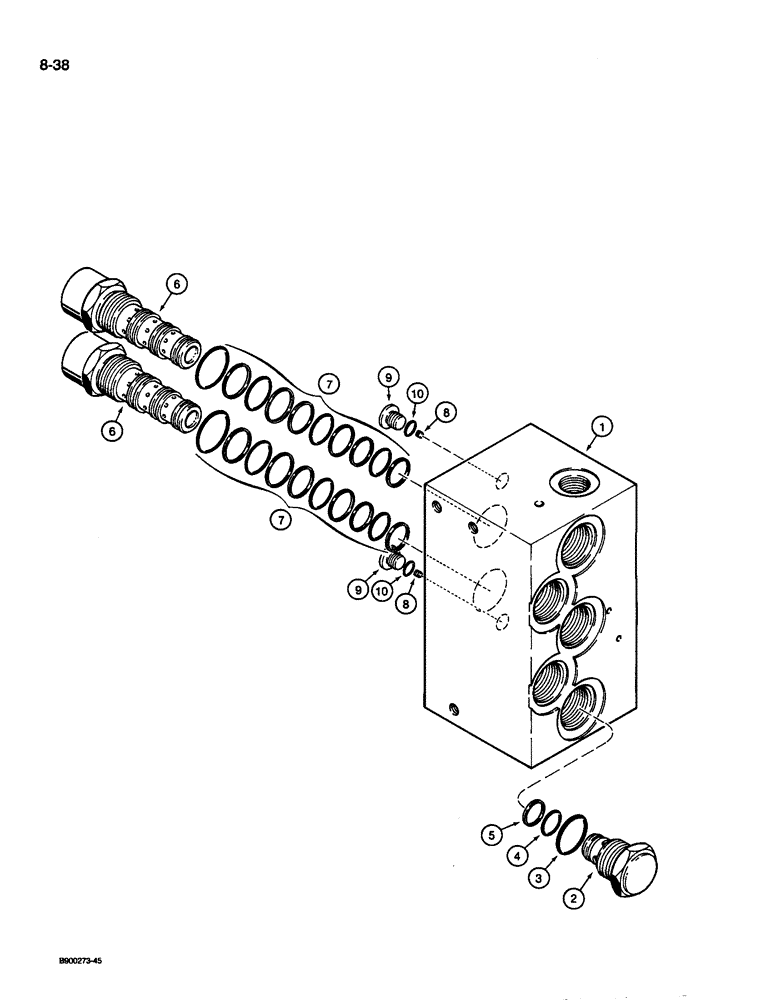

Запчасти Case 1085C (8-038) - HIGH SPEED VALVE ASSEMBLY (08) - HYDRAULICS

S517719

VALVE

ASSEMBLY - high speed, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

N13188

VALVE

ASSEMBLY - check, Includes: Ref. 2 - 5

5шт.

2

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Outer

1шт.

Part may be ordered as S301182 Seal Kit.

1шт.

4

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- inner

1шт.

Part may be ordered as S301182 Seal Kit.

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, inner

1шт.

Part may be ordered as S301182 Seal Kit.

1шт.

S301191

CONTROL

VALVE ASSEMBLY - directional control, 2 position, 3 way, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - solenoid, 2 position, 3 way

1шт.

7

S301193

SEAL KIT

- seal

1шт.

8

S301192

ORIFICE

PLUG - orifice, Includes: Ref. 10

2шт.

9

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 10 Hex Soc, 3/8"-24 ORB

2шт.

10

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
