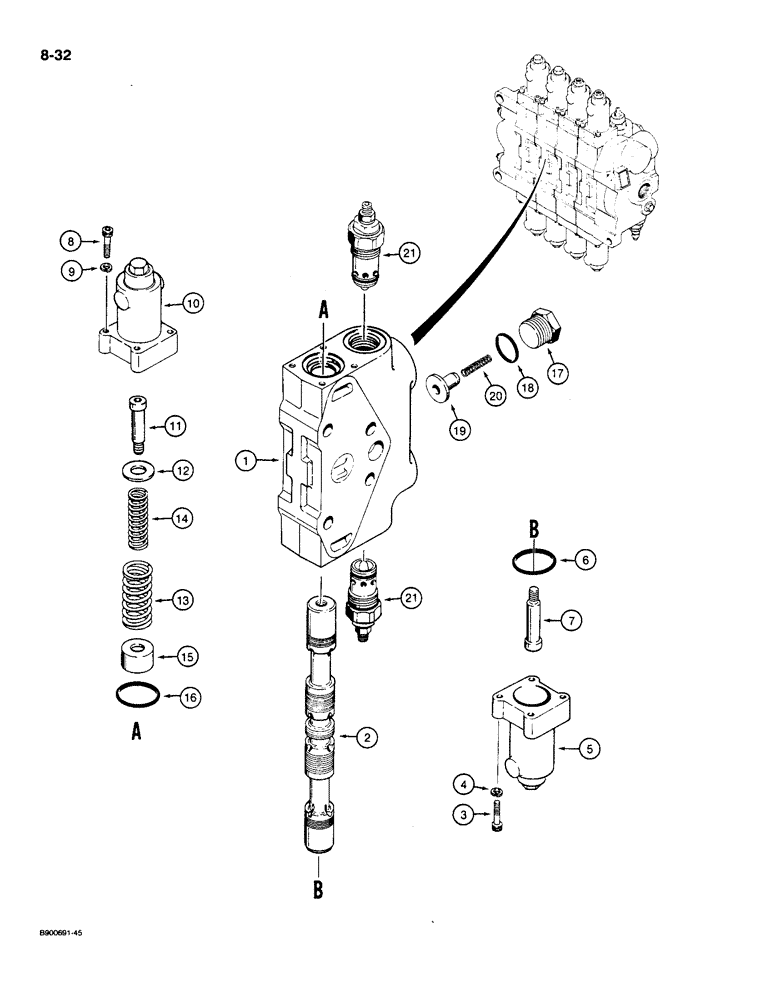

Запчасти Case 1085C (8-032) - AUXILIARY SECTION - 1986643C1 (08) - HYDRAULICS

1986643C1

VALVE

SECTION ASSEMBLY - auxiliary, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - auxiliary

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary section

1шт.

1978288C2

TAPPET

KIT - positioner, Includes: Ref. 3 - 7

1шт.

3

61-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

BOLT - hex socket head, 1/4 NC x 1-1/2 inch

4шт.

4

192-402

LOCK WASHER

WASHER - SAE Hi Collar lock, 1/4 inch

4шт.

5

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

6

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - special, spool guide

1шт.

1978284C2

TAPPET

KIT - positioner, Includes: Ref. 8 - 15

1шт.

8

61-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

BOLT - hex socket head, 1/4 NC x 1-1/2 inch

4шт.

9

192-402

LOCK WASHER

WASHER - SAE Hi Collar lock, 1/4 inch

4шт.

10

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - special, spool positioner

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - spring retainer

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, large

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - spool positioner, small

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

16

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap

1шт.

1978281C1

SET

KIT - load check plug, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

18

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch wide

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

21

1978264C1

VALVE

ASSEMBLY - circuit relief and anticavitation, parts list Figure: 8-034

2шт.
