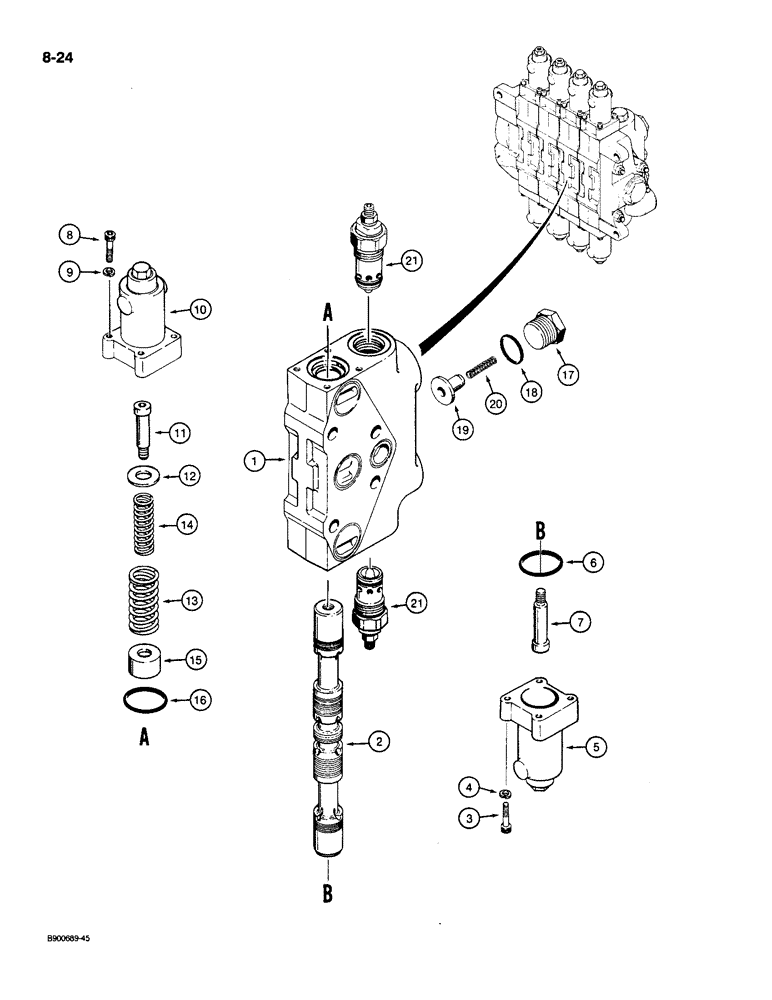

Запчасти Case 1085C (8-024) - AUXILIARY SECTION - 1986636C1, ARM AND SWING CONTROL VALVE ONLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1986636C1
VALVE
SECTION ASSEMBLY - auxiliary, Includes: Ref. 1 - 21
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - auxiliary section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - auxiliary section
1шт.
3
61-32524
HEX SOC SCREW,1/4"-20 x 1 1/2"
BOLT - hex socket, 1/4 NC x 1-1/2 inch
4шт.
4
192-402
LOCK WASHER
WASHER - SAE Hi Collar lock, 1/4 inch
4шт.
5
NSS
NOT SOLD SEPARAT
CAP - spool guide end
1шт.
6
375269R1
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- cap
1шт.
7
NSS
NOT SOLD SEPARAT
BOLT - special, spool guide
1шт.
8
61-32524
HEX SOC SCREW,1/4"-20 x 1 1/2"
BOLT - hex socket, 1/4 NC x 1-1/2 inch
4шт.
9
192-402
LOCK WASHER
WASHER - SAE Hi Collar lock, 1/4 inch
4шт.
10
NSS
NOT SOLD SEPARAT
CAP - spring end
1шт.
11
NSS
NOT SOLD SEPARAT
BOLT - special, spool positioner
1шт.
12
NSS
NOT SOLD SEPARAT
SPACER - spring retainer
1шт.
13
NSS
NOT SOLD SEPARAT
SPRING - spool positioner, large
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - spool positioner, small
1шт.
15
NSS
NOT SOLD SEPARAT
SPACER - spring
1шт.
16
375269R1
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- cap
1шт.
17
NSS
NOT SOLD SEPARAT
PLUG - load check
1шт.
18
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 ID x 1/64 inch wide
1шт.
19
NSS
NOT SOLD SEPARAT
POPPET - load check
1шт.
20
NSS
NOT SOLD SEPARAT
SPRING - load check
1шт.
21
1978264C1
VALVE
ASSEMBLY - circuit relief and anticavitation, parts list Figure: 8-034
2шт.
1978281C1
SET
KIT - load check plug, contains items 17 through 20
1шт.
1978284C2
TAPPET
KIT - positioner, spring end, contains items 8 through 15
1шт.
1978284C2 kit really contains items 3 through 7.
1шт.
1978288C2
TAPPET
KIT - positioner, spool guide end, contains items 3 through 7
1шт.
1978288C2 kit really contains items 8 through 15.
1шт.
