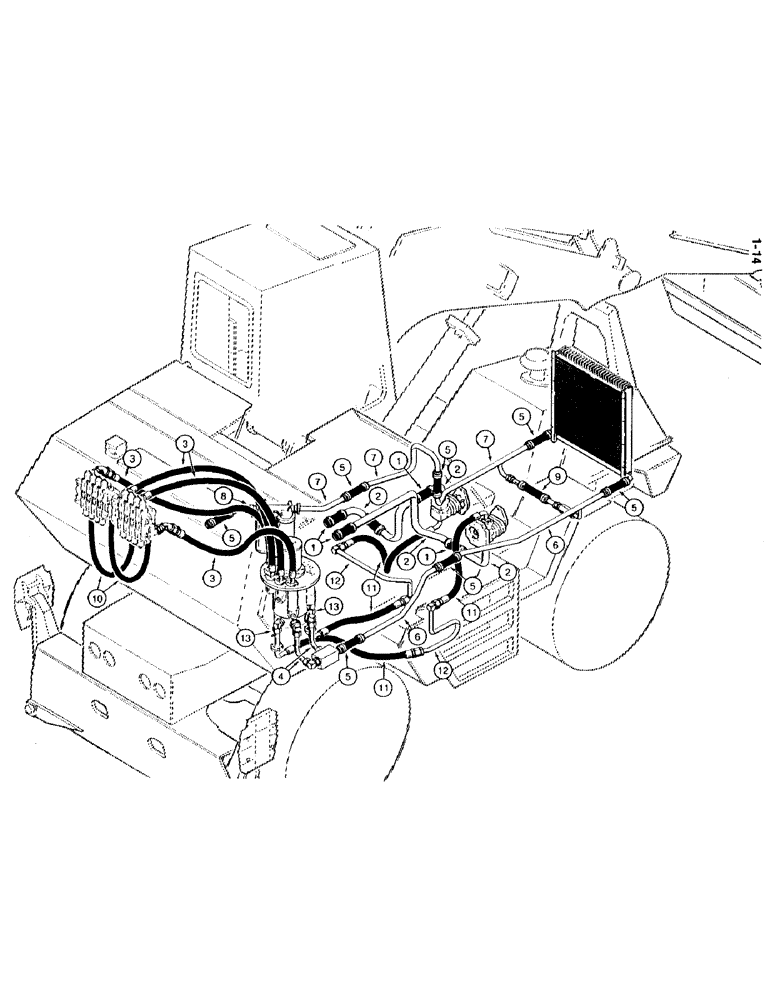

Запчасти Case 1085C (1-14) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Intermediate Supply Hoses from Hydraulic Reservoir to Pumps, Page 8-9

1шт.

2

Supply tubes from Hydraulic Reservoir to Pumps, Page 8-9

1шт.

3

Hoses at Equipment Control Valves to Lower Hydraulic Swivel, Page 8-11

1шт.

4

Tubes from Lower Hydraulic Swivel to Manifold Block, Page 8-7

1шт.

5

Intermediate hoses from Lower Hydraulic Swivel to Cooler and Hydraulic Reservoir, Page 8-7

1шт.

6

Tubes from Manifold Block at Lower Swivel to Hydraulic Oil Cooler, Page 8-7

1шт.

7

Tubes from Hydraulic Oil Cooler To Hydraulic Oil Filter, Page 8-7

1шт.

8

Tube at Hydraulic Oil Filter to Hose at Hydraulic Reservoir, Page 8-7

1шт.

9

Bypass Return Hose, Connecting Tubes, and Check Valve, Page 8-7

1шт.

10

Hoses from Hight Speed Auxiliary Section of Boom and Tool Control Valve and Inlet Section of Arm and Swing Control Valve, Page 8-11

1шт.

11

Hoses from Equipment Pumps to Lower Swivel, Page 8-9

1шт.

12

Tubes from Equipment Pumps to Lower Swivel, Page 8-9

1шт.

13

Tubes with flared spud at Lower Swivel, Page 8-9

1шт.
