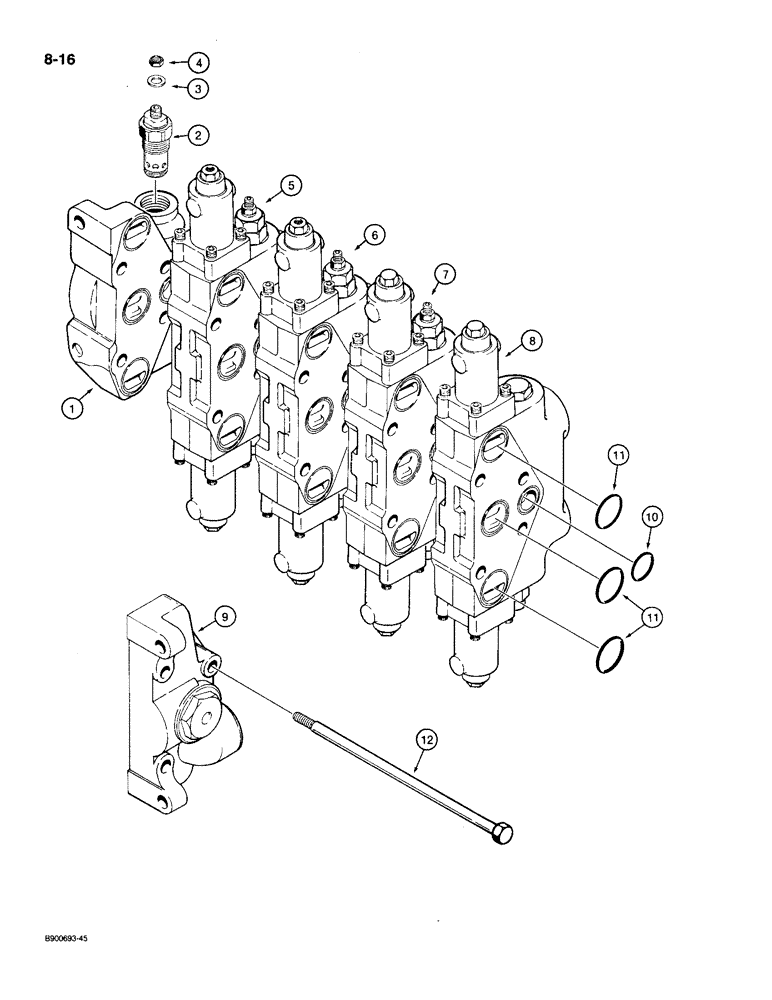

Запчасти Case 1085C (8-016) - ARM AND SWING CONTROL VALVE - 1978152C1 (08) - HYDRAULICS

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, Includes: Ref. 1 - 12

1шт.

1986615C1

VALVE

SECTION ASSEMBLY - inlet, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SECTION - inlet

1шт.

2

1978297C2

VALVE

ASSEMBLY - main relief, parts list Figure: 8-036

1шт.

3

1978295C1

WASHER

- special

1шт.

4

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

5

1986617C1

VALVE

SECTION ASSEMBLY - swing, parts list Figure: 8-020

1шт.

6

1986622C1

HYD VALVE SECTION

SECTION ASSEMBLY - arm, parts list Figure: 8-022

1шт.

7

1986636C1

VALVE

SECTION ASSEMBLY - auxiliary, parts list Figure: 8-024

1шт.

8

1986637C1

VALVE

SECTION ASSEMBLY - auxiliary, parts list Figure: 8-026

1шт.

9

1986639C1

PLATE

SECTION - outlet

1шт.

1978320C1

SEAL KIT

KIT - seal, control valve, between sections, Includes: Ref. 10 and 11

1шт.

10

370943R1

O-RING,1.114" ID x 0.07" Width

- small

5шт.

11

370944R1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

- large

15шт.

12

1986640C1

TRUSS ROD

ROD - special, tie, control valve

4шт.
