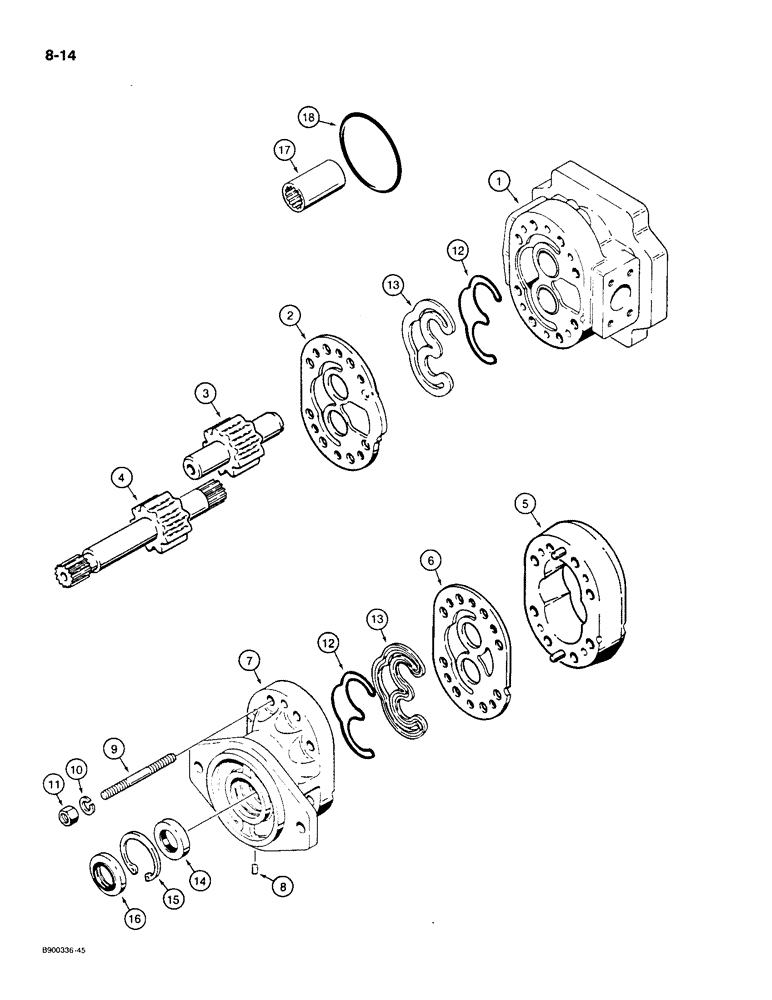

Запчасти Case 1085C (8-014) - BOOM AND TOOL PUMP ASSEMBLY (08) - HYDRAULICS

S517508

PUMP

ASSEMBLY - boom and tool, Includes: Ref. 1 - 18

1шт.

1

S301129

COVER

- port end

1шт.

2

N60191

PLATE

- wear, port end

1шт.

3

N60309

PINION

GEAR - driven, pump

1шт.

4

N60310

GEAR

- drive, pump

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

6

N60187

PLATE

- wear, shaft end

1шт.

7

S301130

COVER

- shaft end

1шт.

8

N60210

PLUG

- shaft end cover

1шт.

9

N60313

STUD

- 4-1/4 inch (107 mm) long

8шт.

10

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

11

129-106

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.

12

N60195

SEAL

- wear plate

2шт.

13

N60194

RETAINER

- seal

2шт.

14

N60213

SEAL

- drive gear shaft, inner

1шт.

15

D41419

RING

- snap, seal retaining

1шт.

16

N60212

SEAL

SEAL - drive gear shaft, outer

1шт.

17

S301128

COUPLING

- pump shaft

1шт.

18

22285R1

O-RING,4.987" ID x 5.193" OD x 0.103"

- port end cover

1шт.
