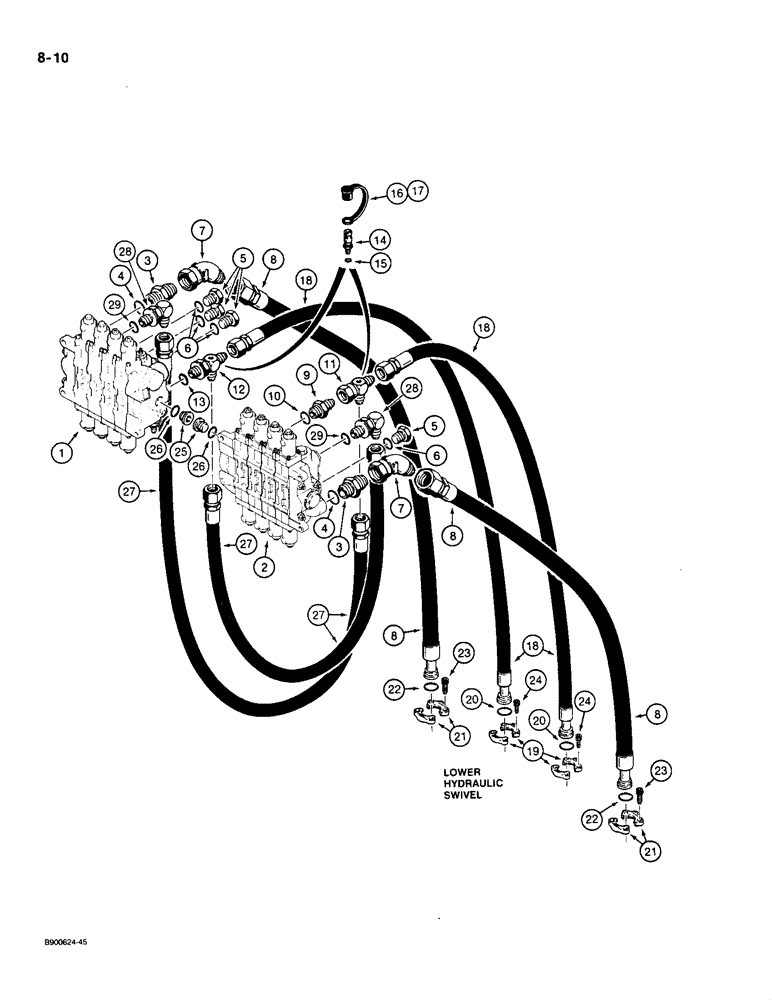

Запчасти Case 1085C (8-010) - MAIN HYDRAULIC CIRCUIT, CONTROL VALVE TO LOWER HYDRAULIC SWIVEL (08) - HYDRAULICS

1

1978153C1

DISTRIBUTOR

VALVE ASSEMBLY - control, boom and tool, parts list Figure: 8-18

1шт.

2

1978152C1

DISTRIBUTOR

VALVE ASSEMBLY - control, arm and swing, parts list Figure: 8-18

1шт.

3

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 flare x 1-5/8-12 inch O-ring, Includes: Ref. 4

2шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

4шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

218-5178

ELBOW,45 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Female JIC

- 45 deg, 1-7/8-12 inch flare x swivel straight thread

2шт.

8

S243721

HOSE ASSY.

HOSE - 1270 mm long, lower hydraulic swivel ports 1 and 8 to control valves

2шт.

9

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16-12 inch flare x O-ring boss, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

11

S243645

FITTING

TEE - special, to hose at lower hydraulic swivel port 3, Includes: Ref. 13

1шт.

12

S243646

FITTING

TEE - special, to hose at lower hydraulic swivel port 2, Includes: Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

S243647

COUPLING

ASSEMBLY - quick disconnect, Includes: Ref. 14 - 17

2шт.

14

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect

1шт.

16

S301201

CAP

- dust, Aero-Quip stamped on coupling, if used

1шт.

17

H434163

DUST CAP

CAP - dust, PD361 is stamped on coupling, if used

1шт.

18

S243247

HOSE

- 46 inch long, lower hydraulic swivel ports 2 and 3 to control valves

2шт.

19

A12306

FLANGE

CLAMP - split flange

4шт.

20

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

21

A12301

CLAMP,Half

CLAMP - split flange

4шт.

22

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- clamp

2шт.

23

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

BOLT - hex socket, 7/16 NC x 1-1/2 inch

8шт.

24

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket, 3/8 NC x 1-1/4 inch

8шт.

25

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. Ref 26 Hex Soc, 1 5/16"-12 ORB

2шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

27

S8628

HOSE

- 36 inch long, at control valves to high speed and pilot manifold valves

2шт.

28

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 29

2шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
