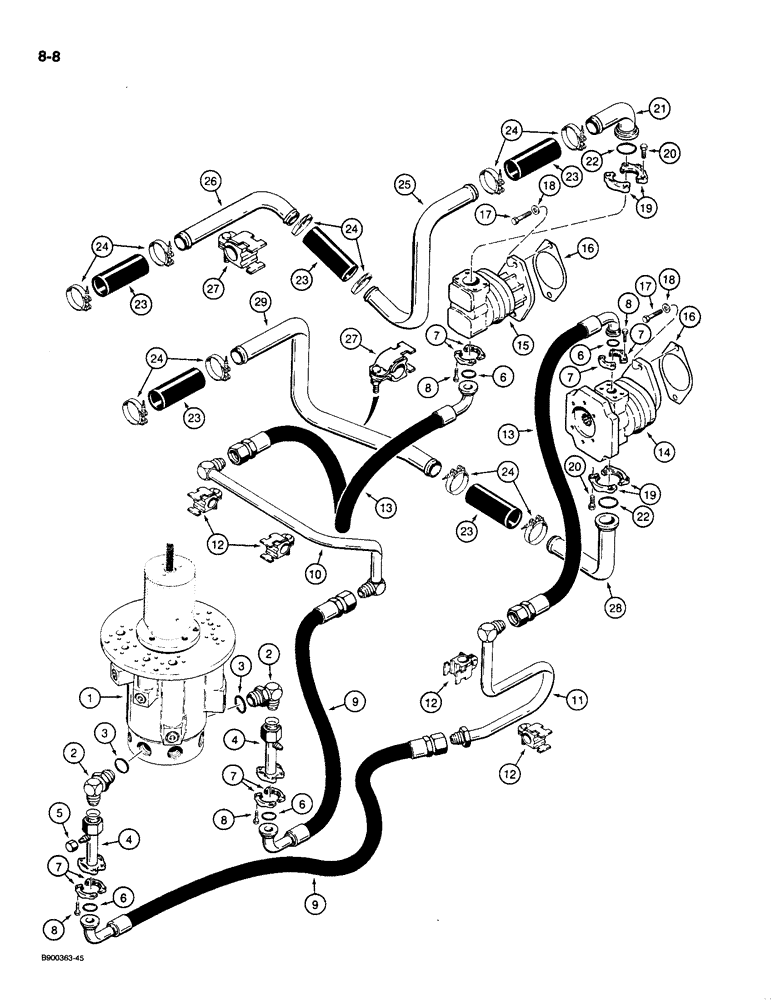

Запчасти Case 1085C (8-008) - MAIN HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO LOWER HYDRAULIC SWIVEL (08) - HYDRAULICS

1

S619177

PIVOT

SWIVEL ASSEMBLY - lower hydraulic, parts list Figure: 8-60

1шт.

2

218-5334

ELBOW,90º, 1 5/8"-12, 37º x 1 7/8"-12, O-Ring

- 90 deg, 1-5/8-12 flare x 1-7/8-12 inch adj O-ring, Includes: Ref. 3

2шт.

3

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

4

S243672

TUBE ASSY.

TUBE ASSEMBLY - at swivel, individual components not serviced separately

2шт.

5

218-756

CAP,37 Degree, 7/8"-14

Tube 37º, 7/8"-14

1шт.

6

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- at tube assembly and pumps

4шт.

7

A12301

CLAMP,Half

CLAMP - split flange

8шт.

8

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

16шт.

9

S243673

HOSE ASSY.

HOSE - 24 inch long, at tube assembly

2шт.

10

S517818

TUBE ASSY.

TUBE - to hose at arm and swing pump assembly

1шт.

11

S517816

TUBE ASSY.

TUBE - to hose at boom and tool pump assembly

1шт.

12

S93266

CLAMP

- tube, includes hardware

4шт.

13

S243674

HOSE ASSY.

HOSE - 48 inch long, at pumps

2шт.

14

S517508

PUMP

ASSEMBLY - boom and tool, parts list Figure: 8-14

1шт.

15

S517509

PUMP

ASSEMBLY - arm and swing, parts list Figure: 8-14

1шт.

16

D53692

GASKET,0.79mm Thk

- pump

2шт.

17

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

18

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

- flat, 41/64 x 1-3/64 x 1/8 inch, hardened.

4шт.

19

A14141

FLANGE

- split, tube

4шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

21

S243586

TUBE

- at arm and swing pump

1шт.

22

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

23

S120880

HYDRAULIC HOSE,2.00" ID x 70.00"

- 7 inch long, intermediate

5шт.

24

L126871

CLAMP

- hose

10шт.

25

S517765

TUBE

- intermediate, at arm and swing pump

1шт.

26

S517764

TUBE

- intermediate, at hydraulic reservoir

1шт.

27

S98476

CLAMP

- tube, includes hardware

2шт.

28

S517768

TUBE

- at boom and tool pump

1шт.

29

S517766

TUBE

- intermediate, to hydraulic reservoir

1шт.
