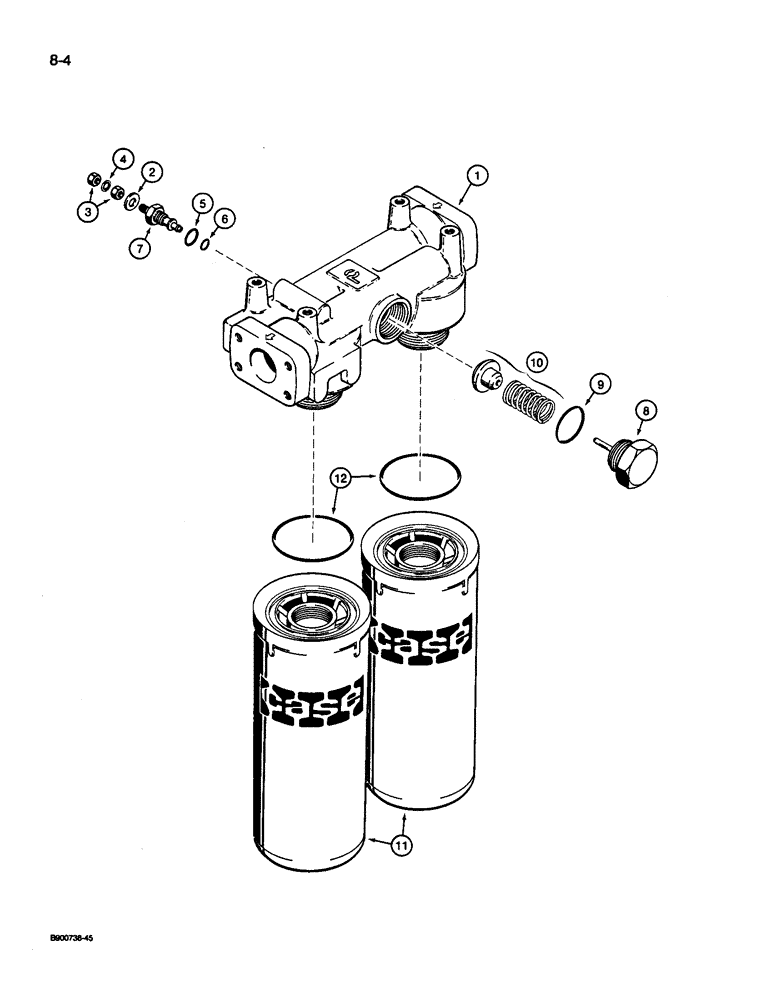

Запчасти Case 1085C (8-004) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

1971539C1

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

1957801C1

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification, red-white color

1шт.

3

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

4

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - hex, bypass valve retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - bypass, 50 psi

1шт.

N9086

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

12

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

- element

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
