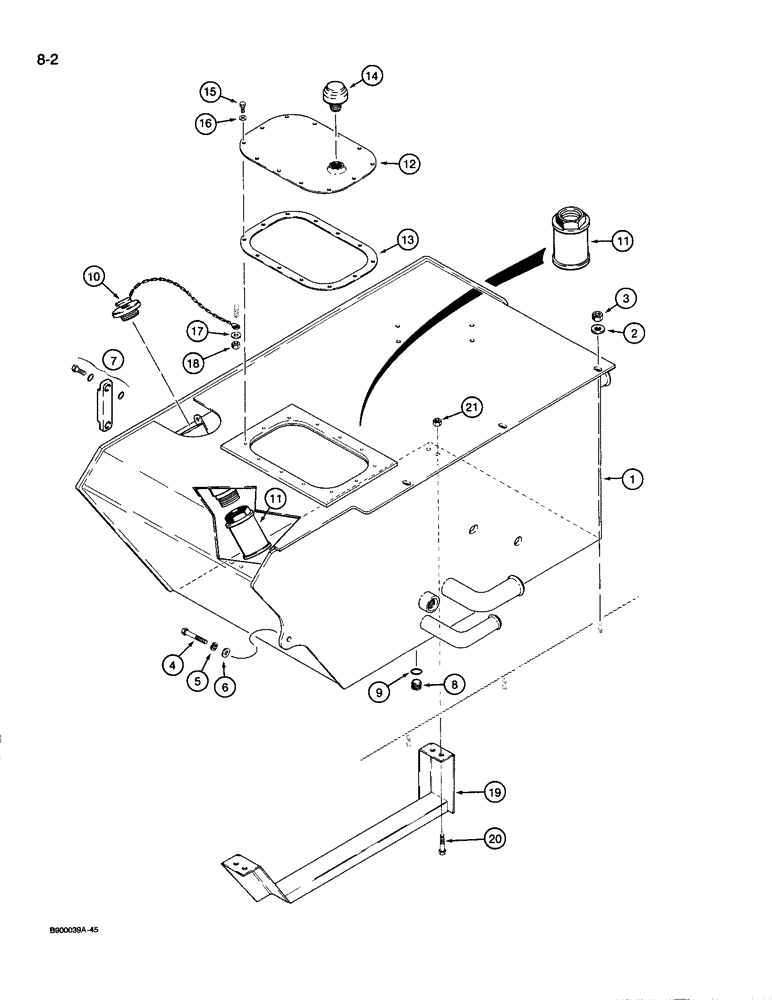

Запчасти Case 1085C (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

S957123

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil

1шт.

2

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

3шт.

3

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

2шт.

7

L116247

GAUGE

- hydraulic fluid, includes mounting hardware

1шт.

8

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. Ref 9 Hex Soc, 1 5/16"-12 ORB

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

10

S243775

CAP

- filler, hydraulic reservoir, includes chain

1шт.

11

S117479

FILTER CARTRIDGE

STRAINER - hydraulic reservoir

2шт.

12

S517741

COVER

- hydraulic reservoir

1шт.

13

S230621

GASKET

- cover

1шт.

14

S91864

BREATHER

- hydraulic reservoir

1шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

12шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

12шт.

17

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

19

S619361

STEP

- operator access, lower

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

21

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.
