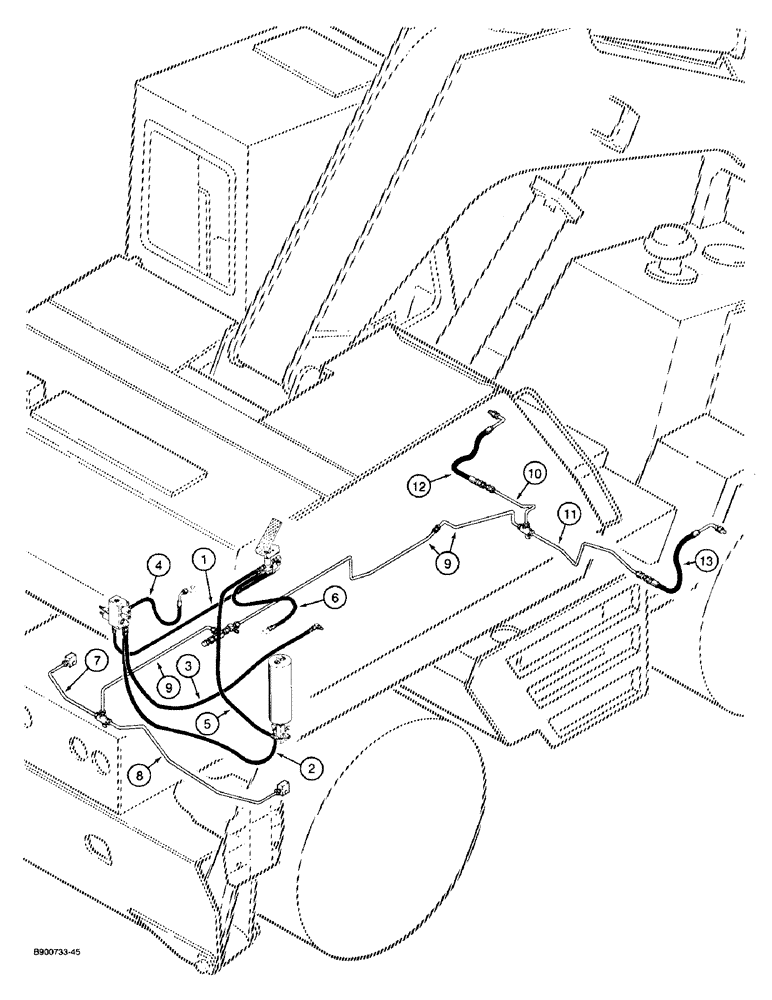

Запчасти Case 1085C (1-12) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

Hose from Pilot Manifold Valve to Brake Valve, Page 7-15

1шт.

2

Hose at Pilot Manifold Valve to Manifold at Brake Accumulator, Page 7-15

1шт.

3

Hose at Pilot Manifold Valve to Upper Hydraulic Swivel (Swivel Not Shown), Page 7-15

1шт.

4

Hose at Pilot Manifold Valve to Tee, Page 7-15

1шт.

5

Hose from Manifold at Brake Accumulator to Brake Valve, Page 7-15

1шт.

6

Hose at Brake Valve to Cross in Hand and Foot Control Supply and Return Circuit, Page 7-15

1шт.

7

Tube to Left Rear Brake Housing, Page 7-17

1шт.

8

Tube to Right Rear Brake Housing, Page 7-17

1шт.

9

Intermediate Tubes to Left-Hand and Right-Hand Brake Housing, Page 7-17

1шт.

10

Tube to Hose at Left Upper Caliper, Page 7-17

1шт.

11

Tube to Hose at Right Upper Caliper, Page 7-17

1шт.

12

Hose to Left Upper Caliper, Page 7-17

1шт.

13

Hose to Right Upper Caliper, Page 7-17

1шт.
