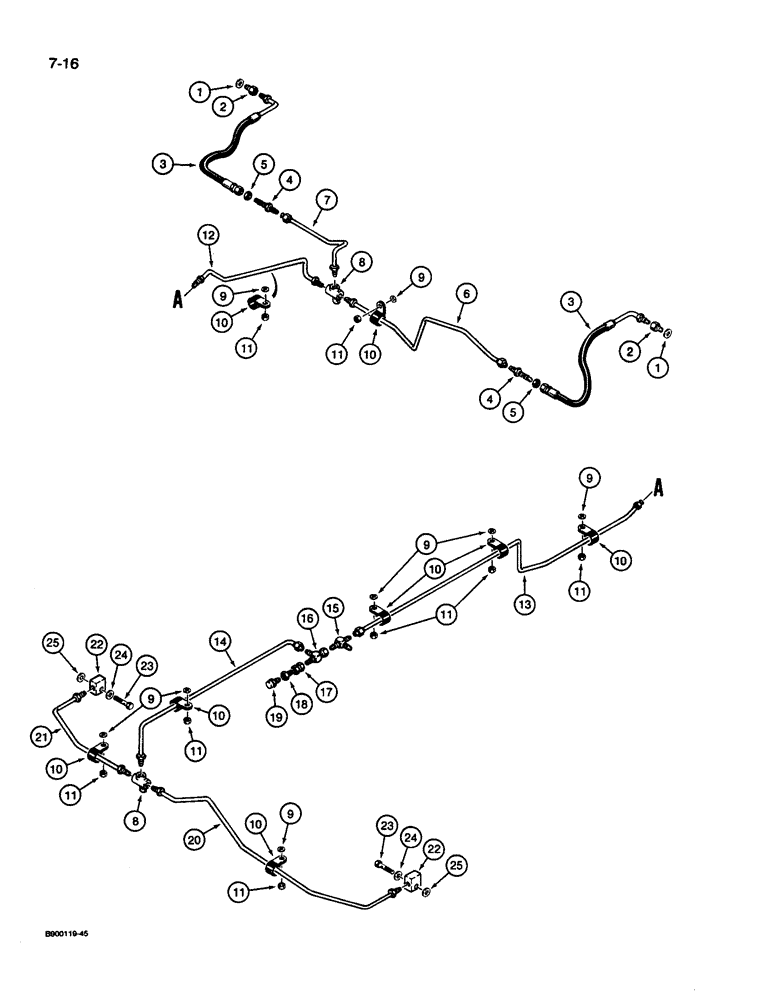

Запчасти Case 1085C (7-16) - LOWER BRAKE SYSTEM, UPPER SWIVEL HOSE TO BRAKE CALIPERS (07) - BRAKES

1

A12988

GASKET

- adapter

2шт.

2

S66382

ADAPTER

- hydraulic brake hose

2шт.

3

S243602

HOSE ASSY.

HOSE - 625 mm long, front, Serial Range: calipers-tube

2шт.

4

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - bulkhead, 7/16-20 inch flare x bulkhead flare

2шт.

5

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead, 7/16 inch NF

2шт.

6

S243615

TUBE

- brake, right-hand front

1шт.

7

S243617

TUBE

- brake, left-hand front

1шт.

8

A12452

FITTING

MANIFOLD - brake tube

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, 6.35 mm ID

8шт.

11

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

8шт.

12

S517918

TUBE

- brake, front

1шт.

13

S517917

TUBE

- brake, center

1шт.

14

S243604

TUBE

- brake, rear

1шт.

15

S243528

TEE

- special, connects hose from port No. 5 on inner swivel to center and rear brake tubes

1шт.

16

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x fl x adj straight thread

1шт.

17

218-1562

HYD CONNECTOR,37 Degree, Sw, 7/16"-20 x 1/4"-18 NPTF

ADAPTER - straight, 7/16-20 fem swivel x 1/4 inch fem PT

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4 x 1/8 inch PT

1шт.

19

S243429

SWITCH

- brake

1шт.

20

S243613

TUBE

- brake, right-hand rear

1шт.

21

S243608

TUBE

- brake, left-hand rear

1шт.

22

A18531

FITTING

- special, rear tubes to brake housing

2шт.

23

A12864

BOLT

- special, fitting

2шт.

24

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

2шт.

25

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner (next to brake housing)

2шт.
