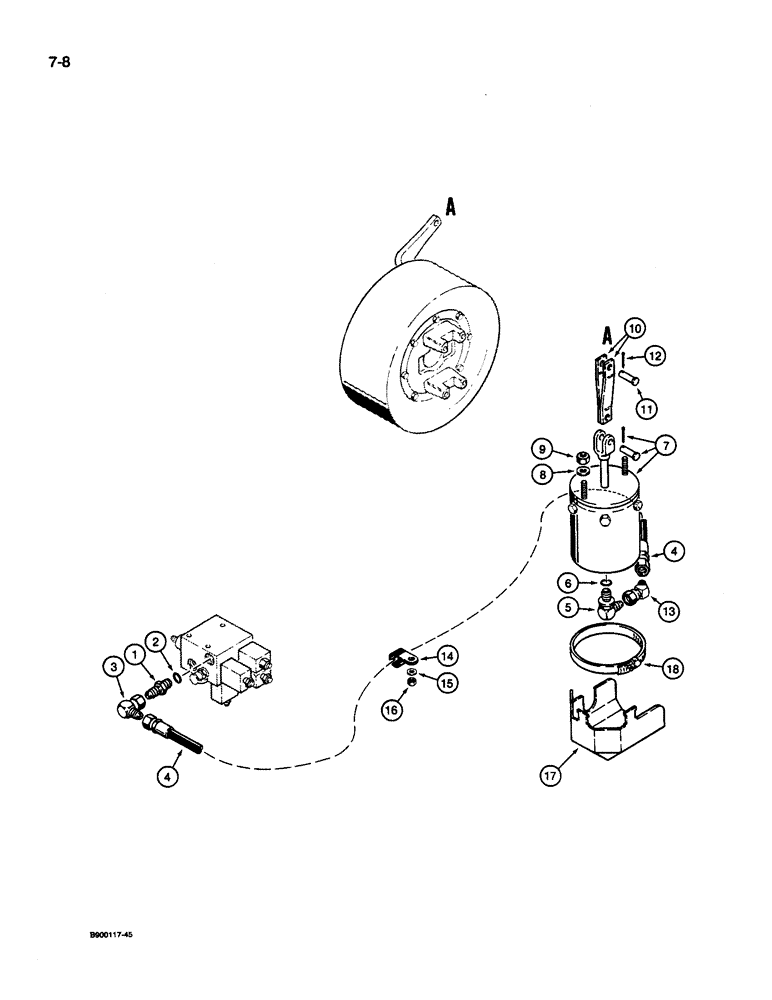

Запчасти Case 1085C (7-08) - PARKING BRAKE SYSTEM (07) - BRAKES

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 deg. swivel, 3/4-16 inch flare x fem flare swivel

1шт.

4

L76752

TUBE

HOSE - 65 inch. lower manifold valve to parking brake actuator

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adj., 3/4-16 inch flare x O-ring boss, Includes: Ref. 6

1шт.

7

S619639

ACTUATOR

ASSEMBLY - parking brake, parts list Figure: 7-10

1шт.

8

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

9

131-676

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.

10

S243752

LINK

- actuator to parking brake

2шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-5/16 inch

1шт.

12

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg., 3/4-16 inch flare x swivel straight thread

1шт.

14

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

17

S517975

COVER

- actuator

1шт.

18

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

- adj. 5-1/4 - 5-9/16 inch dia.

1шт.

6

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch wide

1шт.
