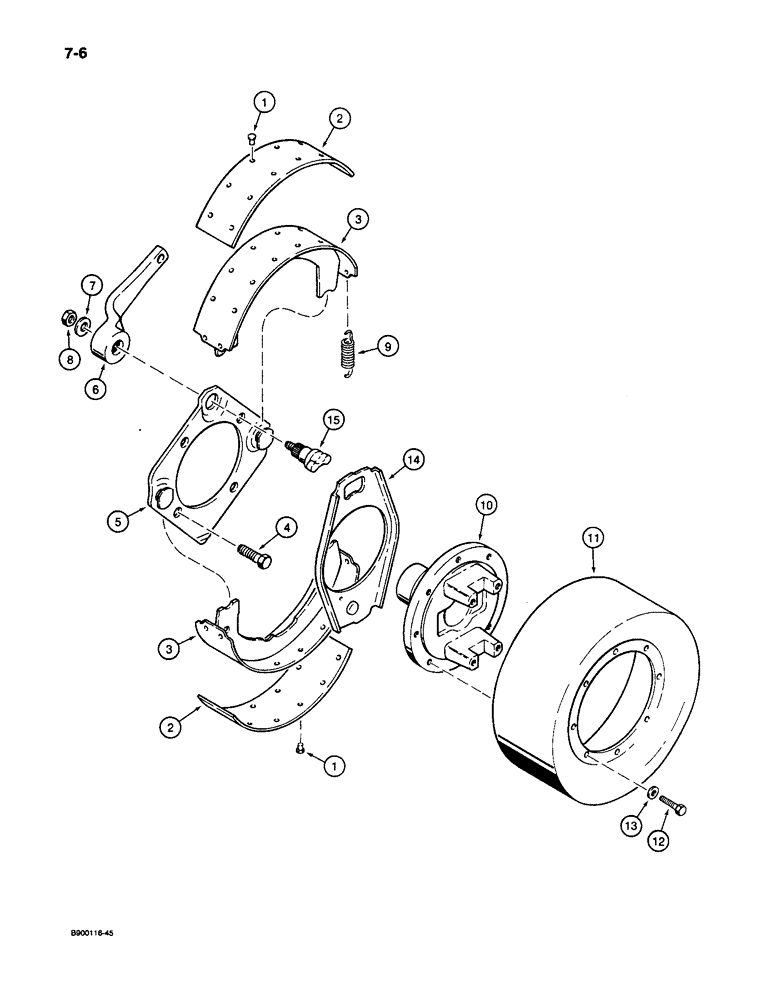

Запчасти Case 1085C (7-06) - REAR AXLE, PARKING BRAKE (07) - BRAKES

S517955

AXLE

- rear, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 figure 7-4, and 1 - 15 this figure

1шт.

S517956

AXLE

- rear, no-spin, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 figure 7-4, and 1 - 15 this figure

1шт.

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - parking, Includes: Ref. 1 - 15

1шт.

S301229

SHOE

AND LINING ASSEMBLY - parking brake, Includes: Ref. 1 - 3

2шт.

1

S301230

RIVET

-, Serial Range: lining-shoe

12шт.

Included in Lining Replacement Kit, P/N S301231

1шт.

2

NSS

NOT SOLD SEPARAT

LINING - brake shoe

1шт.

Included in Lining Replacement Kit, P/N S301231

1шт.

3

S301232

SHOE

- parking brake

1шт.

4

26-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

- hex, 5/8 NC x 1-5/8 inch, grade 8

4шт.

5

232049R11

PLATE

- backing

1шт.

6

S301233

LEVER

- actuating

1шт.

7

S301316

WASHER

- special, lever

1шт.

8

131-12

LOCK NUT,9/16"-12, GB

NUT, LOCK, 9/16"-12, GB

1шт.

9

233009R1

VALVE SPRING

SPRING - shoe return

4шт.

10

S301234

FLANGE

YOKE - brake drum

1шт.

11

S302020

DRUM

- parking brake

1шт.

12

28-718

BOLT,Hex, 7/16" - 20 x 1-1/8", Gr 8

- hex, 7/16 NF x 1-1/8 inch, grade 8

8шт.

13

213319R1

WASHER

- special, Serial Range: drum-flange

8шт.

14

233010R11

STAY

BRACE - backing plate

1шт.

15

S301236

BRACE

CAMSHAFT - lever

1шт.

S301231

KIT

- lining replacement, Includes: Ref. 1 and 2

1шт.
