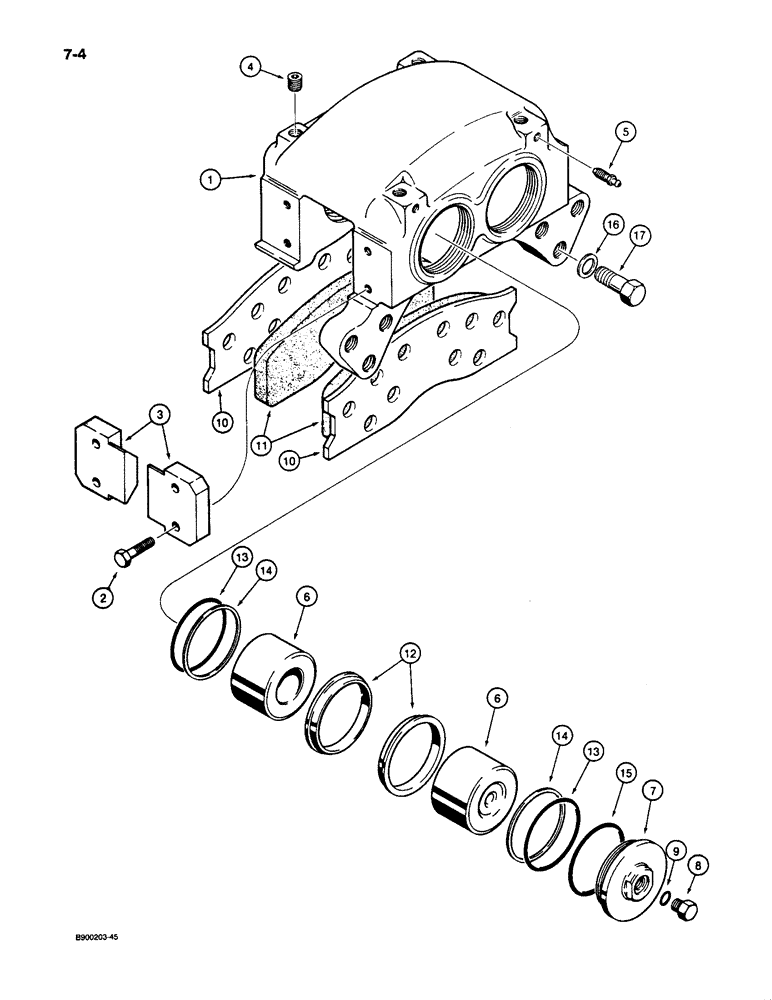

Запчасти Case 1085C (7-04) - REAR AXLE BRAKE CALIPERS (07) - BRAKES

S517955

AXLE

- rear, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 this figure, and 1 - 15 figure 7-6

1шт.

S517956

AXLE

- rear, no-spin, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 this figure, and 1 - 15 figure 7-06

1шт.

S301254

PISTON

CALIPER ASSEMBLY - brake, rear, Includes: Ref. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

113-2618

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

Hex, 5/8"-11 x 1 1/2", G8

8шт.

3

N7962

PLATE

- lining retaining

4шт.

4

221-841

PLUG

- hex socket, 1/4 inch PT

4шт.

5

N7966

BLEEDER

VALVE - bleeder

2шт.

6

N7963

PISTON

- brake

4шт.

7

N7965

COVER

HEAD - piston

2шт.

8

129998

PLUG,1/2" - 20 ORB

Incl. Ref. 9 Hex Hd, 1/2"-20 ORB

2шт.

S301265

LINING

KIT - brake shoe and lining, Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

11

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

12

S301256

SEAL

WIPER - piston

4шт.

13

S301259

O-RING

- piston

4шт.

14

S301258

BACK-UP RING

RING - backup, piston O-ring

4шт.

15

S301260

O-RING

- head

2шт.

16

L36067

WASHER

- flat, 3/4 inch

12шт.

17

S301321

BOLT

- hex, special

12шт.

9

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
