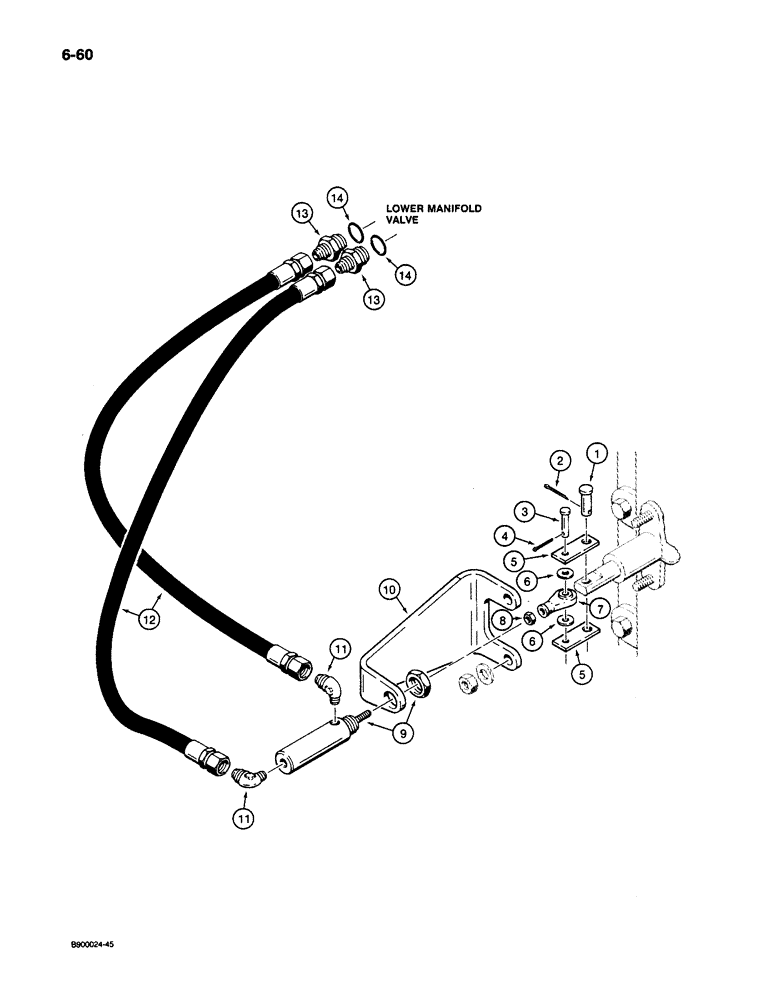

Запчасти Case 1085C (6-60) - HIGH-LOW SHIFT LINES, TRANSMISSION TO LOWER MANIFOLD VALVE (06) - POWER TRAIN

1

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

2

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

3

141-62

CLEVIS PIN,1/4" x 1.219"

PIN - clevis, 1/4 x 1-1/8 inch

1шт.

4

32-410

COTTER PIN,1/16" x 5/8"

PIN, SPLIT (COTTER), 1/16" x 5/8"

1шт.

5

S120973

LINK

- high-low shift rod to ball joint

2шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

7

A146456

BALL

JOINT - ball, cylinder

1шт.

8

425-114

NUT,1/4"-28, G5

1шт.

9

S243211

CYLINDER

- high-low shift, component parts are not serviced

1шт.

10

S517682

BRACKET

- cylinder mounting

1шт.

11

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 9/16-18 flare x 1/8 inch PT

2шт.

12

S77121

HOSE

- 20 inch long, cylinder to lower manifold valve

2шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
