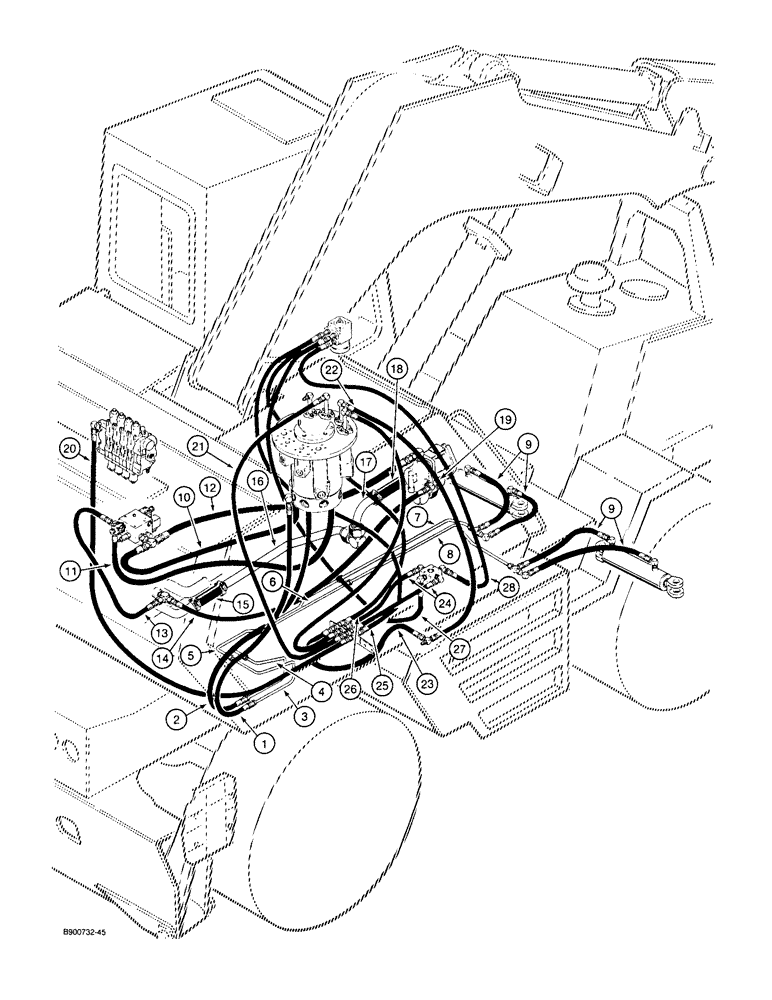

Запчасти Case 1085C (1-10) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Hose at Swivel Port "5", Page 5-7

1шт.

2

Hose at Swivel Port "7", Page 5-7

1шт.

3

Tube from Swivel Port "5", Page 5-7

1шт.

4

Tube from Swivel Port "7", Page 5-7

1шт.

5

Intermediate Tube from Swivel Port "5", Page 5-7

1шт.

6

Intermediate Tube from Swivel Port "7", Page 5-7

1шт.

7

Tube to Hose at Steering Cylinder from Swivel Port "5", Page 5-7

1шт.

8

Tube to Hose at Steering Cylinder from Swivel Port "7", Page 5-7

1шт.

9

Hoses to Steering Cylinders, Page 5-7

1шт.

10

Hose at Swivel Port "6", Page 5-7

1шт.

11

Hose at Swivel Port "4", Page 5-7

1шт.

12

Hose from Steering and Control Pump to Hose at Swivel Port "6", Page 5-9

1шт.

13

Hose to Lower Manifold, Page 5-9

1шт.

14

Hose from Hydraulic Reservoir to Steering and Control Pump, Page 5-9

1шт.

15

Hose at Hydraulic Reservoir, Page 5-9

1шт.

16

Tube to Hose at Hydraulic Reservoir, Page 5-9

1шт.

17

Intermediate Tube from Hydraulic Reservoir to Steering and Control Pump, Page 5-9

1шт.

18

Intermediate hose to tube at Steering and Control Pump, Page 5-9

1шт.

19

Tube at Steering and Control Pump, Page 5-9

1шт.

20

Hose at Boom and Tool Control Valve, Page 5-11

1шт.

21

Hoses at Upper Swivel Ports "5" and "7", Page 5-11

1шт.

22

Hose at Upper Swivel Port "6", Page 5-11

1шт.

23

Hose to Pilot Manifold Valve Port "A", Page 5-11

1шт.

24

Hoses to Steering Reversing Valve from Bracket, Page 5-11

1шт.

25

Hose at Steering Control Valve Port "T", Page 5-11

1шт.

26

Hose at Steering Control Valve Port "P", Page 5-11

1шт.

27

Hose at Steering Control Valve Port "L", Page 5-11

1шт.

28

Hose at Steering Control Valve Port "R", Page 5-11

1шт.
