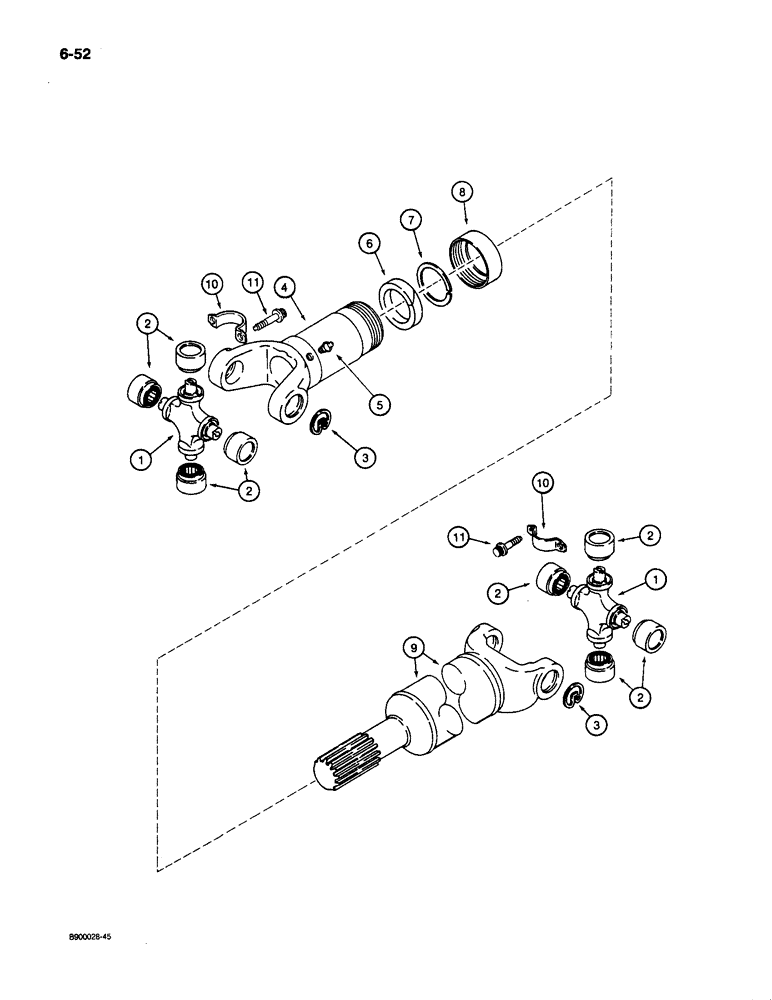

Запчасти Case 1085C (6-52) - DRIVE SHAFT, FRONT AXLE TO TRANSMISSION (06) - POWER TRAIN

S243754

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission, Includes: Ref. 1 - 9

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing

4шт.

3

NSS

NOT SOLD SEPARAT

RING - retaining, bearing

4шт.

4

D47592

HALF SHAFT

YOKE - slip, Includes: Ref. 5

1шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

6

S301161

SEAL

WASHER - special, rubber

1шт.

7

S88377

WASHER

- special, metal

1шт.

8

69882C1

CYLINDER END CAP

COUPLING - yoke

1шт.

9

69770C1

SHAFT

YOKE AND SHAFT - splined end

1шт.

10

L116943

SECURING STRAP

STRAP - bearing, drive, Serial Range: shaft-yoke

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Drive shaft mounting 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
