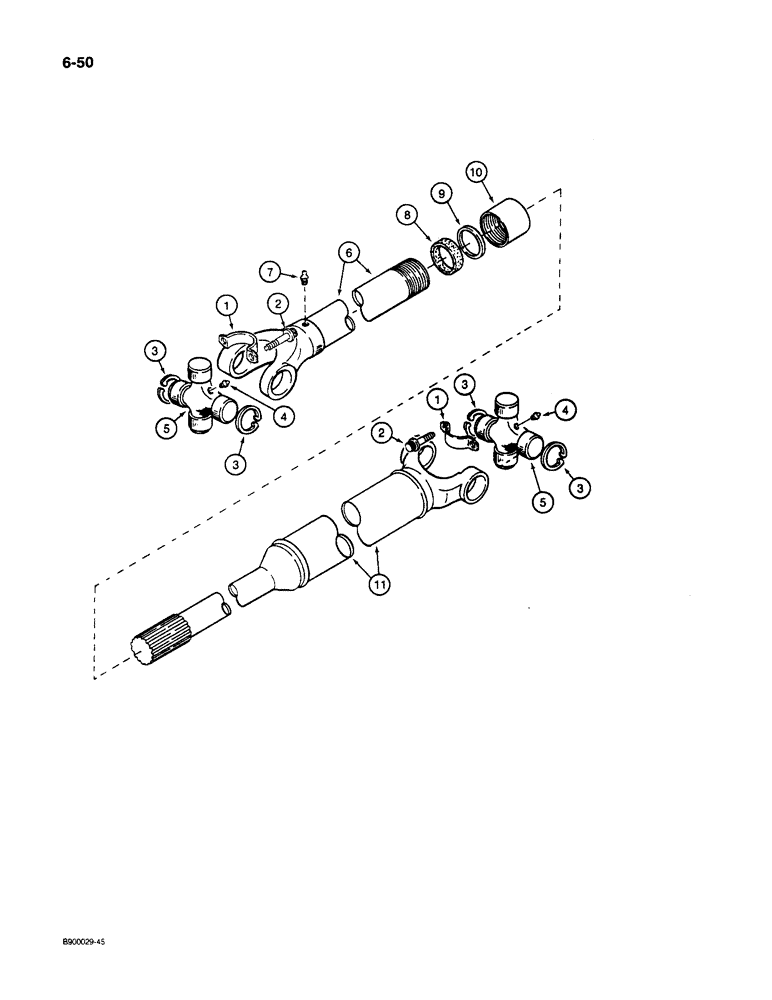

Запчасти Case 1085C (6-50) - DRIVE SHAFT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

D137626

CLAMP,30.175mm D Clamping Pipe

STRAP - bearing, drive, Serial Range: shaft-yoke

4шт.

2

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special, drive shaft mounting

8шт.

S243595

DRIVE SHAFT

SHAFT ASSEMBLY - drive, torque converter to transmission, Includes: Ref. 3 - 11

1шт.

S240058

KIT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

RING - snap, bearing

2шт.

4

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

5

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

6

S118319

YOKE

- slip, Includes: Ref. 7

1шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

8

R13997

WASHER

- cork

1шт.

9

H299347

WASHER

- special, cork retaining

1шт.

10

H299321

CAP

COUPLING - yoke end

1шт.

11

S300949

SHAFT

YOKE AND SHAFT - splined end

1шт.
