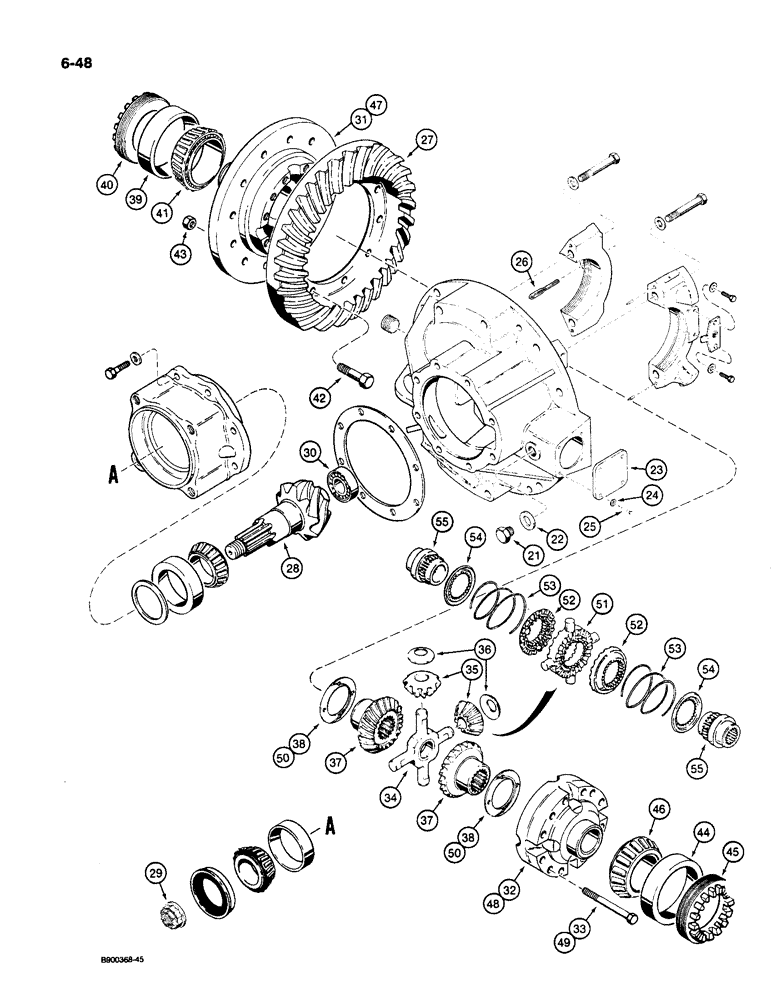

Запчасти Case 1085C (6-48) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

S517955

AXLE

ASSEMBLY - rear drive, continued from Figure: 6-46, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 this figure, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

S517956

AXLE

ASSEMBLY - rear drive with no-spin, continued from Figure: 6-46, Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 this figure, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

21

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

- hex, 16 - 2.0 x 100 mm, class 10.9

1шт.

22

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

23

S301216

COVER

- carrier

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

4шт.

25

S301313

BOLT

- hex, special, Serial Range: cover-carrier

4шт.

26

732-3232

COTTER PIN,M3.2 x 32

PIN - cotter, 3 x 32 mm, cap

1шт.

S301208

GEAR

SET - ring and pinion, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - pinion

1шт.

29

S301311

NUT

- special, slotted

1шт.

30

S301213

ROLLER BEARING

BEARING - roller

1шт.

S301220

FLANGE

CAGE ASSEMBLY - differential, S517955 rear axle only, Includes: Ref. 31 - 38

1шт.

31

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

32

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

33

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

12шт.

34

S301224

SPIDER ASSY.

SHAFT - cross

1шт.

35

A18175

PINION

GEAR - pinion, differential

4шт.

36

S301225

WASHER

- thrust, pinion gear

4шт.

37

S301223

GEAR

- side, differential

2шт.

38

S301222

WASHER

- thrust, side gear

2шт.

39

S301227

CUP

- tapered roller bearing, outer, cage end

1шт.

40

S301228

RING

- bearing adjustment, cage end

1шт.

41

S301226

CONE

BEARING - tapered roller, cage end

1шт.

42

S301314

BOLT

- special, Serial Range: gear-cage

12шт.

43

S301315

NUT

- hex, special

12шт.

44

S301218

CUP

- tapered roller bearing, outer, cover end

1шт.

45

S301217

RING

- bearing adjustment, cover end

1шт.

46

S301219

CONE

BEARING - tapered roller, cover end

1шт.

S301267

DIFFERENTIAL

CAGE ASSEMBLY - differential, S517956 no-spin rear axle only, Includes: Ref. 47 - 49

1шт.

47

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

48

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

49

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

12шт.

50

S301222

WASHER

- thrust, side gear

2шт.

S301266

CASE

SPIDER AND GEAR ASSEMBLY - no-spin, Includes: Ref. 51 - 55

1шт.

51

L35997

TOGGLE

SPIDER - differential

1шт.

52

L35998

CLUTCH ASSEMBLY

GEAR - side, inner

2шт.

53

L36000

VALVE SPRING

SPRING - spider

2шт.

54

A44688

DIFFERENTIAL

RETAINER - spring

2шт.

55

S301268

GEAR

- side, outer

2шт.
