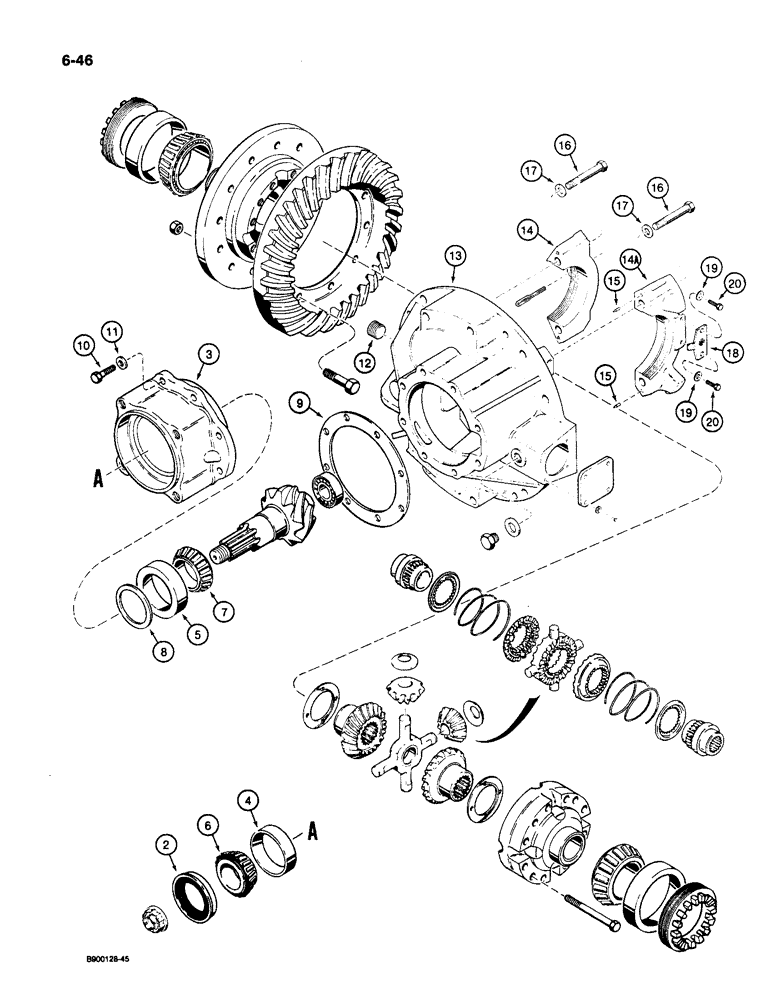

Запчасти Case 1085C (6-46) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

S517955

AXLE

ASSEMBLY - rear drive, , Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 this figure, 21 - 55 figure 6-48, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

S517956

AXLE

ASSEMBLY - rear drive with no-sping, , Includes: Ref. 1 - 18 figure 6-42, 1 - 29 figure 6-44, 1 - 20 this figure, 21 - 55 figure 6-48, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

1

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - parking, not shown, parts list Figure: 7-6

1шт.

2

N9921

SEAL

- oil, pinion

1шт.

S301202

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

4

S301205

CUP

- tapered roller bearing, outer

1шт.

5

S301206

CUP

- tapered roller bearing, inner

1шт.

6

S301204

ROLLER BEARING

BEARING - tapered roller, outer

1шт.

7

S301207

CUP

BEARING - tapered roller, inner

1шт.

S301203

KIT

- spacer, bearing cage, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .236 inch (5.994 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .238 inch (6.045 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .239 inch (6.071 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .240 inch (6.096 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .242 inch (6.147 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .243 inch (6.172 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .246 inch (6.248 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .247 inch (6.274 mm) thick

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - bearing, .248 inch (6.299 mm) thick

1шт.

9

S301209

SHIM,.002" Thk

(.0508 mm) .002" Thk

3шт.

9

S301210

SHIM,.005" Thk

(.1270 mm) .005" Thk

2шт.

9

S301211

SHIM,.008" Thk

(.20 mm) .008" Thk

4шт.

9

S301212

SHIM,.020" Thk

(.51 mm) .020" Thk

1шт.

10

S301331

BOLT

- hex head, special

8шт.

11

S301332

WASHER

- flat, special

8шт.

12

S301312

PLUG

- oil filler, special

1шт.

S301214

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 1 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

14

NSS

NOT SOLD SEPARAT

CAP - bearing, without ears

1шт.

14a

NSS

NOT SOLD SEPARAT

CAP - bearing, with ears

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - adjustment

4шт.

16

NSS

NOT SOLD SEPARAT

BOLT - bearing cap

4шт.

17

NSS

NOT SOLD SEPARAT

WASHER - flat, bearing cap bolt

4шт.

18

S301215

DIFFERENTIAL LOCK

PLATE - locking, differential carrier

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

20

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8mm - 1.25 x 20 mm

2шт.
