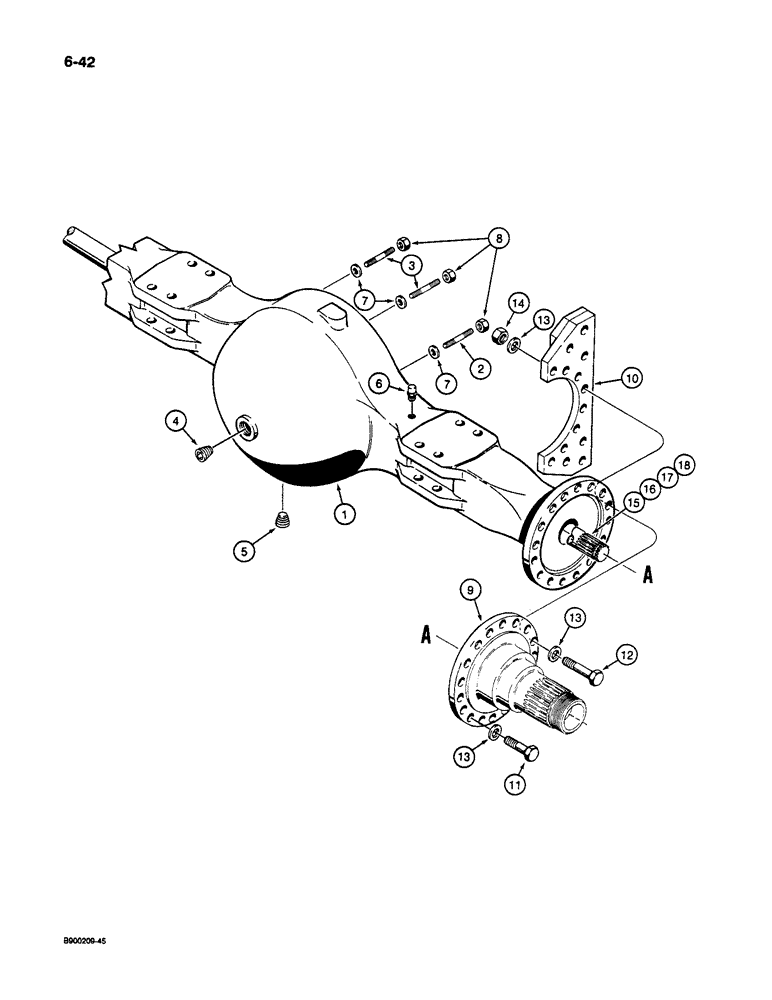

Запчасти Case 1085C (6-42) - REAR DRIVE AXLE, HOUSING AND SHAFTS (06) - POWER TRAIN

S517955

AXLE

ASSEMBLY - rear drive, Includes: Ref. 1 - 18 this figure, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

S517956

AXLE

ASSEMBLY - rear drive with no-spin, Includes: Ref. 1 - 18 this figure, 1 - 29 figure 6-44, 1 - 20 figure 6-46, 21 - 55 figure 6-48, 1 - 17 figure 7-04, and 1 - 15 figure 7-06

1шт.

S301237

HOUSING

ASSEMBLY - rear drive axle, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear drive axle

1шт.

2

S301323

STUD

- short

8шт.

3

S301322

BOLT

STUD - long

4шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT, oil filler

1шт.

5

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket, 3/4 inch PT

1шт.

6

A12928

BREATHER

- oil

1шт.

7

D47366

WASHER

- flat, 1/2 inch, hardened, special

12шт.

8

9411648

LOCK NUT,1/2"-20, GC

NUT - hex self-locking, 1/2 inch NC

12шт.

9

S301250

SPINDLE

- planetary

2шт.

10

S301251

ADAPTER

PLATE - mount, rear axle

2шт.

11

S301319

BOLT

- hex, short, special

14шт.

12

S301320

BOLT

- hex, long, special

14шт.

13

L36067

WASHER

- flat, special, Serial Range: spindle-housing

42шт.

14

131-197

LOCK NUT,3/4"-10, GC

NUT - hex, self-locking, 3/4 inch NC

28шт.

15

S301252

AXLE

SHAFT - long, S517955 axle

1шт.

16

S301253

AXLE

SHAFT - short, S517955 axle

1шт.

17

S301355

SHAFT

- long, S517956 axle

1шт.

18

S301356

SHAFT

- short, S517956 axle

1шт.
