(6-40) - REAR DRIVE AXLE MOUNTING

Запчасти Case 1085C (6-40) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN

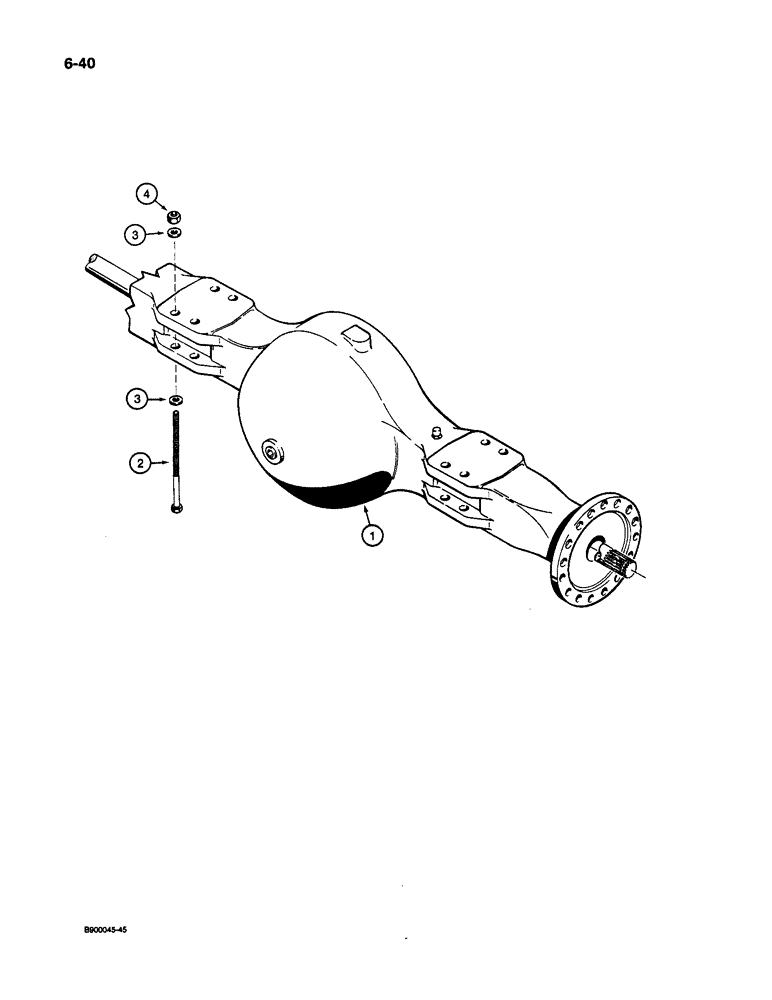

Схема запчастей Case 1085C - (6-40) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S517955

AXLE

ASSEMBLY - rear drive, parts list Figures: 6-42 through 6-48, 7-04, and 7-06

1шт.

1

S517956

AXLE

ASSEMBLY - rear drive, no-spin, parts list Figures: 6-42 through 6-48, 7-04, and 7-06

1шт.

2

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

8шт.

3

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

16шт.

4

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

8шт.
