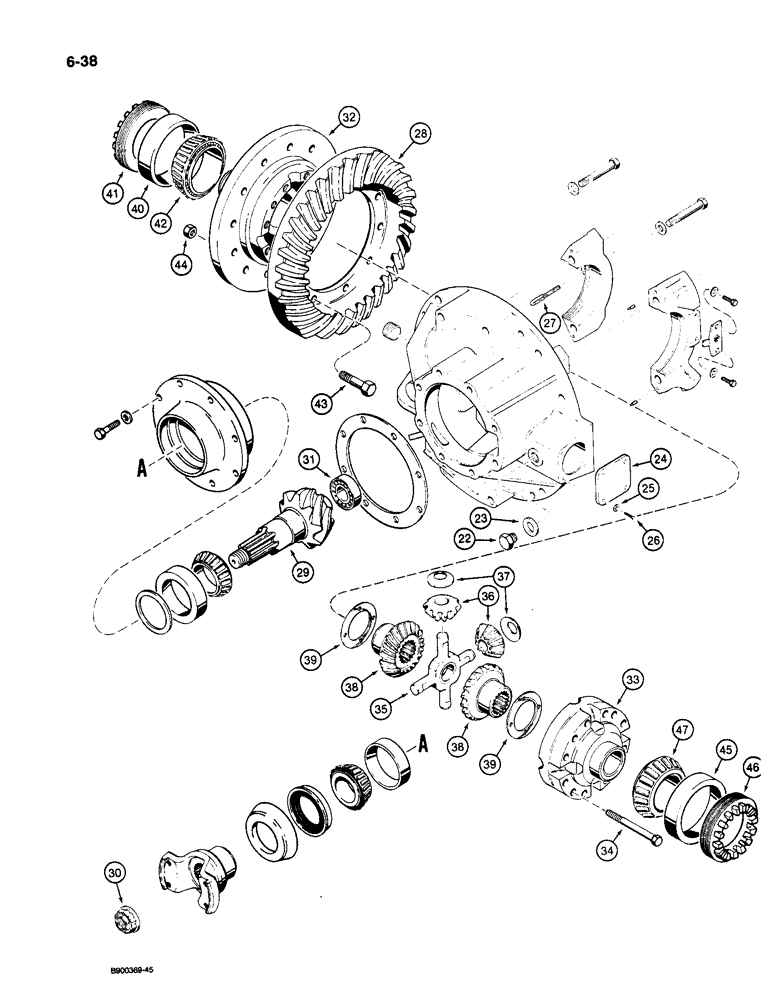

Запчасти Case 1085C (6-38) - FRONT STEERING AXLE, DIFFERENTIAL (06) - POWER TRAIN

S517957

AXLE

ASSEMBLY - front steering, continued from Figure: 6-36, Includes: Ref. 1 - 13 figure 6-30, 1 - 26 figure 6-32, 1 - 29 figure 6-34, 1 - 21 figure 6-36, 22 - 47 this figure, and 1 - 18 figure 7-02

1шт.

22

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

- hex, 16 - 2.0 x 100 mm, class 10.9

1шт.

23

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

24

S301216

COVER

- carrier

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

4шт.

26

S301313

BOLT

- hex, special, Serial Range: cover-carrier

4шт.

27

732-3232

COTTER PIN,M3.2 x 32

PIN - cotter, 3 x 32 mm, cap

1шт.

S301208

GEAR

SET - ring and pinion, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - pinion

1шт.

30

S301311

NUT

- hex, slotted

1шт.

31

S301213

ROLLER BEARING

BEARING - roller

1шт.

S301220

FLANGE

CAGE ASSEMBLY - differential, Includes: Ref. 35 - 39

1шт.

32

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

33

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

34

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

12шт.

35

S301224

SPIDER ASSY.

SHAFT - cross

1шт.

36

A18175

PINION

GEAR - pinion, differential

4шт.

37

S301225

WASHER

- thrust, pinion gear

4шт.

38

S301223

GEAR

- side, differential

2шт.

39

S301222

WASHER

- thrust, side gear

2шт.

40

S301227

CUP

- tapered roller bearing, outer, cage end

1шт.

41

S301228

RING

- bearing adjustment, cage end

1шт.

42

S301226

CONE

BEARING - tapered roller, cage end

1шт.

43

S301314

BOLT

- special, Serial Range: gear-cage

12шт.

44

S301315

NUT

- hex, special

12шт.

45

S301218

CUP

- tapered roller bearing, outer, cover end

1шт.

46

S301217

RING

- bearing adjustment, cover end

1шт.

47

S301219

CONE

BEARING - tapered roller, cover end

1шт.
