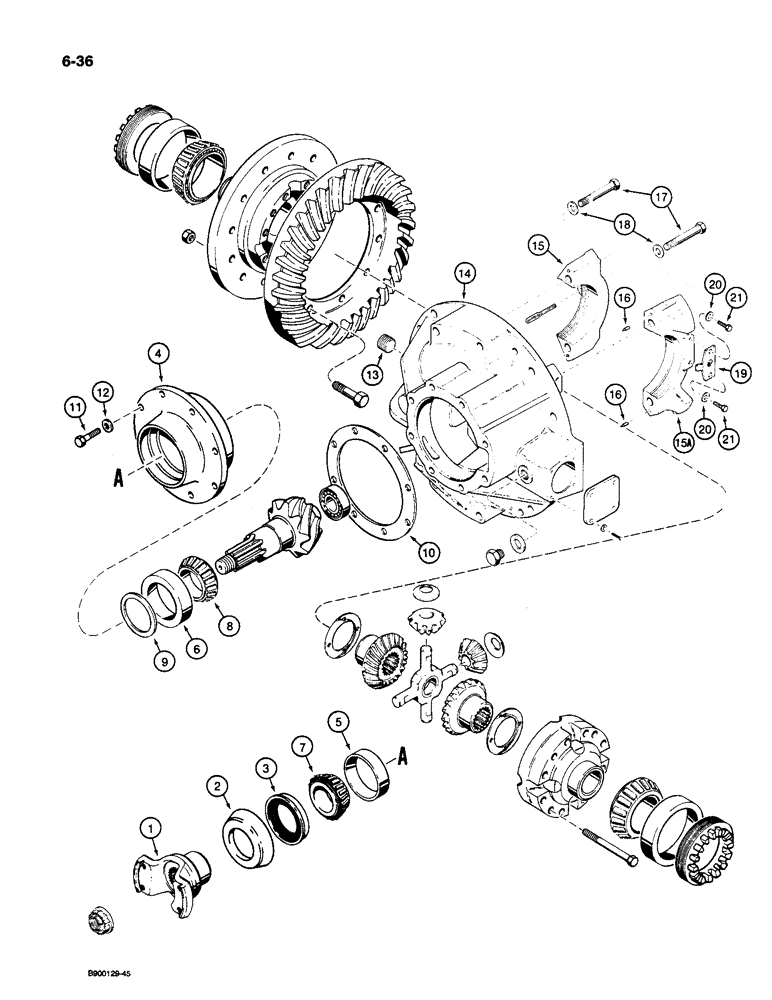

Запчасти Case 1085C (6-36) - FRONT STEERING AXLE, DIFFERENTIAL (06) - POWER TRAIN

S517957

AXLE

ASSEMBLY - front steering, Includes: Ref. 1 - 13 figure 6-30, 1 - 26 figure 6-32, 1 - 29 figure 6-34, 1 - 21 this figure, 22 - 47 figure 6-38, and 1 - 18 figure 7-02

1шт.

S301269

DEFLECTOR

YOKE ASSEMBLY - shaft, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - shaft

1шт.

2

S113924

SLINGER

DEFLECTOR - yoke

1шт.

3

N9921

SEAL

- oil, pinion

1шт.

S301221

CASE

CAGE ASSEMBLY - pinion shaft, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

5

S301205

CUP

- tapered roller bearing, outer

1шт.

6

S301206

CUP

- tapered roller bearing, inner

1шт.

7

S301204

ROLLER BEARING

BEARING - tapered roller, outer

1шт.

8

S301207

CUP

BEARING - tapered roller, inner

1шт.

S301203

KIT

- spacer, bearing cage, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .236 inch (5.994 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .238 inch (6.045 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .239 inch (6.071 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .240 inch (6.096 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .242 inch (6.147 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .243 inch (6.172 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .246 inch (6.248 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .247 inch (6.274 mm) thick

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - bearing, .248 inch (6.299 mm) thick

1шт.

10

S301209

SHIM,.002" Thk

(.0508 mm) .002" Thk

3шт.

10

S301210

SHIM,.005" Thk

(.1270 mm) .005" Thk

2шт.

10

S301211

SHIM,.008" Thk

(.20 mm) .008" Thk

4шт.

10

S301212

SHIM,.020" Thk

(.51 mm) .020" Thk

1шт.

11

S301331

BOLT

- hex head, special

8шт.

12

S301332

WASHER

- flat, special

8шт.

13

S301312

PLUG

- oil filler, special

1шт.

S301214

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - bearing, without ears

1шт.

15a

NSS

NOT SOLD SEPARAT

CAP - bearing, with ears

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - adjustment

4шт.

17

NSS

NOT SOLD SEPARAT

BOLT - bearing cap

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - flat, bearing cap bolt

4шт.

19

S301215

DIFFERENTIAL LOCK

PLATE - locking, differential carrier

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

21

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm

2шт.
