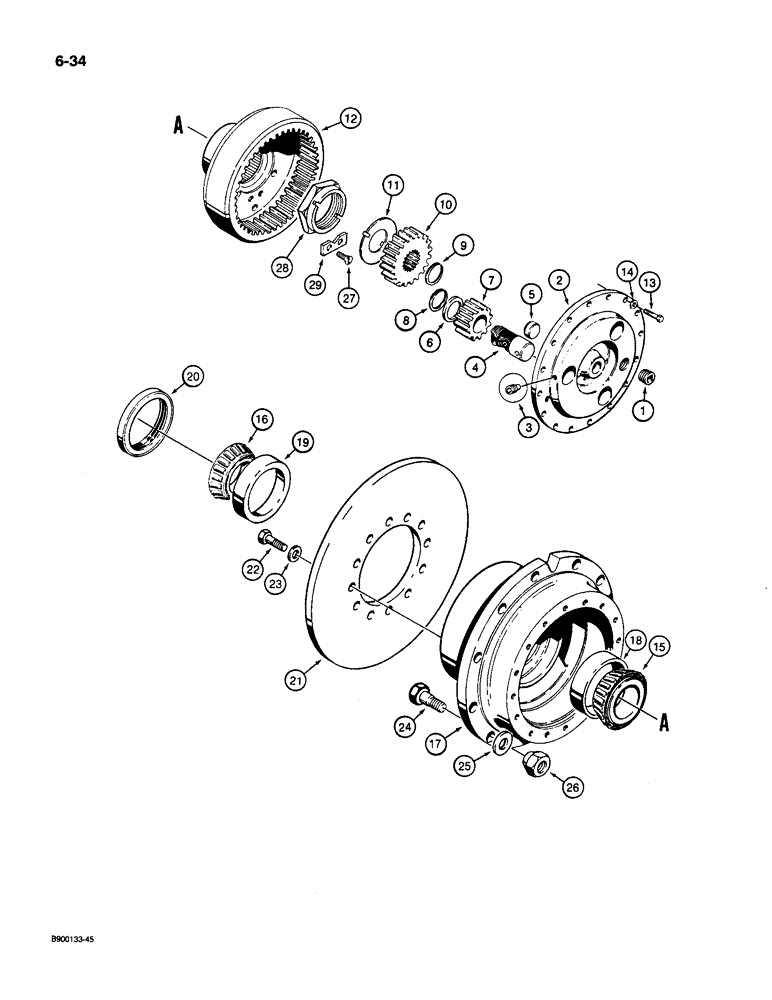

Запчасти Case 1085C (6-34) - FRONT STEERING AXLE, PLANETARY AND HUBS (06) - POWER TRAIN

S517957

AXLE

ASSEMBLY - front steering, Includes: Ref. 1 - 13 figure 6-30, 1 - 26 figure 6-32, 1 - 29 this figure, 1 - 21 figure 6-36, 22 - 47 figure 6-38, and 1 - 18 figure 7-02

1шт.

1

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket, 3/4 inch PT

2шт.

S301239

PLANETARY REDUCER

SPIDER AND PINION ASSEMBLY - planetary, Includes: Ref. 2 - 8

2шт.

N13560

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

N7103

STUD

SCREW - set, special

3шт.

4

N7102

PINION

SHAFT - pinion, axle

3шт.

5

N13346

BUTTON

- thrust

1шт.

6

A47986

WASHER

- thrust, pinion

3шт.

7

D88721

GEAR WHEEL

GEAR - pinion, planetary

3шт.

8

A18242

RING

- snap, pinion gear

3шт.

9

A18241

RING

- snap, sun gear

2шт.

10

D88719

GEAR WHEEL

GEAR - sun, planetary

2шт.

11

S301240

WASHER

- thrust, ring gear

2шт.

12

S301243

GEAR

- ring, hub

2шт.

13

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

14

213524R1

WASHER

- flat, spider to hub, special

32шт.

15

S301244

CONE

BEARING - tapered roller, outer

2шт.

16

S301245

CONE

BEARING - tapered roller, inner

2шт.

S301246

HUB

ASSEMBLY - axle, Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

18

S301247

CUP

- tapered roller bearing, outer

1шт.

19

S301248

CUP

- tapered roller bearing, inner

1шт.

20

L35032

OIL SEAL,126.09mm ID x 158.95mm OD x 15.37mm Thk

SEAL - oil, bearing, inner

2шт.

21

S301249

ROTOR

DISC - hub

2шт.

22

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

24шт.

23

L36067

WASHER

- flat, special

24шт.

24

135996H1

WHEEL BOLT,3/4" - 16 x 2 3/8", Gr 8

BOLT - hex, special, Serial Range: wheel-hub

24шт.

25

S113950

WASHER

- flat, special, Serial Range: wheel-hub

24шт.

26

S301326

NUT

- hex, special, Serial Range: wheel-hub

24шт.

27

S301324

BOLT

- self-locking, special, hub bearing

4шт.

28

S301241

NUT

- hex, special, hub bearing

2шт.

29

S301242

LOCK NUT

PLATE - locking, hub bearing nut

2шт.
