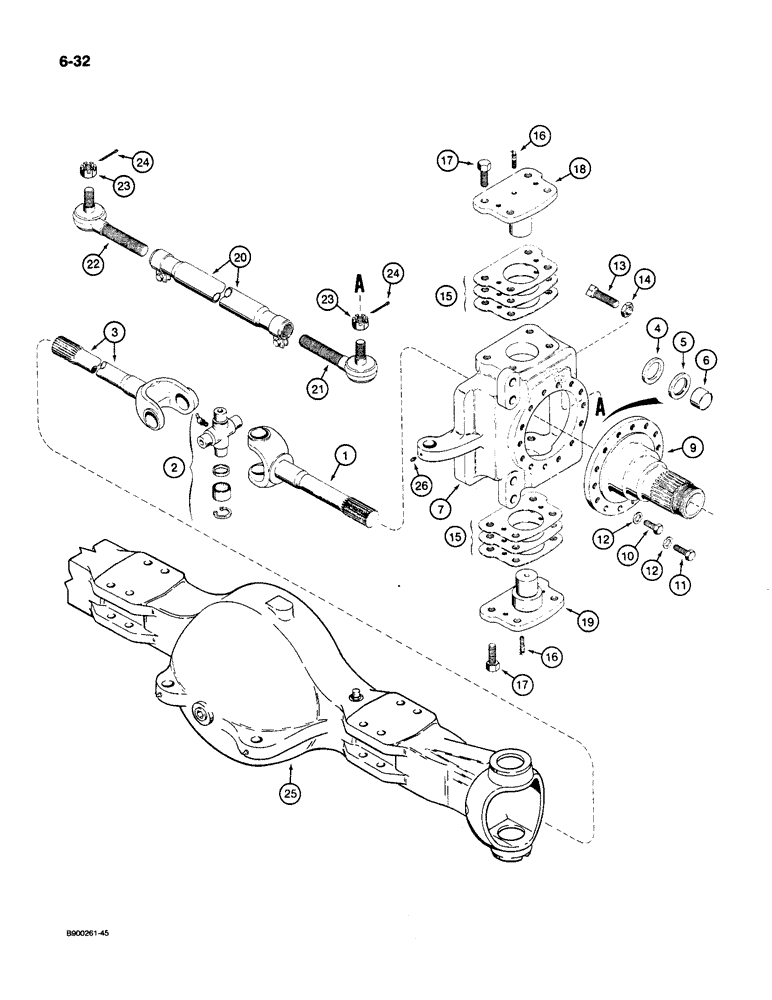

Запчасти Case 1085C (6-32) - FRONT STEERING AXLE, SWIVEL HOUSING, UNIVERSAL JOINT AND TIE ROD (06) - POWER TRAIN

S517957

AXLE

ASSEMBLY - front steering, Includes: Ref. 1 - 13 figure 6-30, 1 - 26 this figure, 1 - 29 figure 6-34, 1 - 21 figure 6-36, 22 - 47 figure 6-38, and 1 - 18 figure 7-02

1шт.

S301287

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, right-hand, front steering axle, Includes: Ref. 1 - 3

1шт.

S301286

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, left-hand, front steering axle, not shown, Includes: Ref. 1 - 3

1шт.

1

S301385

YOKE

SHAFT - yoke, wheel

1шт.

2

S301387

YOKE

JOINT - universal, axle shaft, component parts are not serviced separately

1шт.

3

S301386

YOKE

SHAFT - yoke, inner

1шт.

4

S301284

WASHER

- thrust

2шт.

Thrust washer shown in service manual on page 5005-23 that fits on lower swivel cap is S301284.

1шт.

5

S301285

OIL SEAL

- oil

2шт.

6

S301283

BUSHING

- spindle

2шт.

7

S301276

KNUCKLE

HOUSING - swivel, right-hand

1шт.

8

S301275

KNUCKLE

HOUSING - swivel, left-hand, not shown

1шт.

9

S301274

SPINDLE

- planetary

2шт.

10

S117403

CAPSCREW

BOLT - hex, special

8шт.

11

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8

20шт.

12

A16783

WASHER

- flat, special

28шт.

13

S301327

SQUARE BOLT

BOLT - square head, special

2шт.

14

132787H1

NUT - hex, jam, special

2шт.

15

S301277

SHIM,.003" Thk

1шт.

15

S301278

SHIM,.005" Thk

1шт.

15

S301279

SHIM,.010" Thk

1шт.

16

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

4шт.

17

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Cap to swivel housing Hex, 3/4"-10 x 2", G8

16шт.

18

S301281

CAP

- upper swivel

2шт.

19

S301280

CAP

- lower swivel

2шт.

S301282

TIE-ROD

ROD ASSEMBLY - tie, Includes: Ref. 20 - 22

1шт.

20

S301388

ROD ASSY.

ROD - tie, includes clamps

1шт.

21

S301389

END

SWIVEL - tie rod, right-hand

1шт.

22

S301390

END

SWIVEL - tie rod, left-hand

1шт.

23

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, 7/8"-14, G5, Thk

2шт.

24

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

25

REF

INSTRUCTION

HOUSING ASSEMBLY - front steering axle, parts list Figure: 6-30

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, not included with axle, steering cylinder mounting

2шт.
