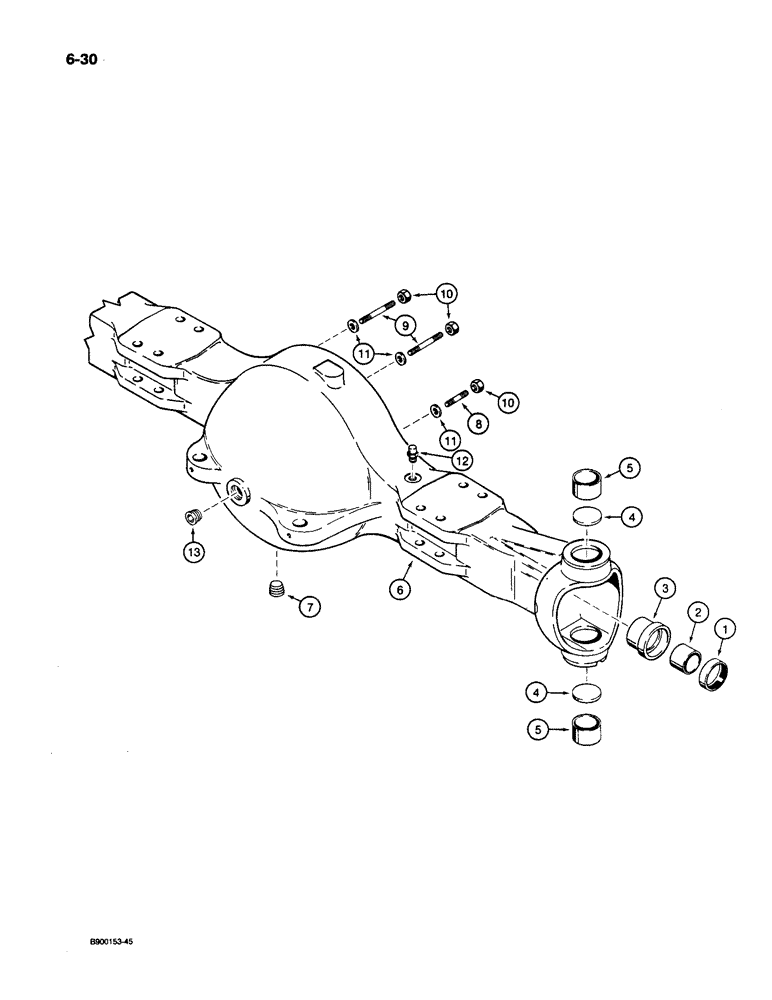

Запчасти Case 1085C (6-30) - FRONT STEERING AXLE, HOUSING (06) - POWER TRAIN

S517957

AXLE

ASSEMBLY - front steering, Includes: Ref. 1 - 13 this figure, 1 - 26 figure 6-32, 1 - 29 figure 6-34, 1 - 21 figure 6-36, 22 - 47 figure 6-38, and 1 - 18 figure 7-02

1шт.

1

S301271

OIL SEAL

- oil

2шт.

2

A18209

BEARING

BUSHING - yoke shaft

2шт.

3

S301270

SLEEVE

- housing

2шт.

4

S301273

PLUG

- expansion

4шт.

5

S301272

BUSHING

- steering knuckle cap

4шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - front steering axle

1шт.

7

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4 inch PT, magnetic, oil drain

1шт.

8

S301323

STUD

- short

8шт.

9

S301322

BOLT

STUD - long

4шт.

10

9411648

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, special

12шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

12шт.

12

A12928

BREATHER

- housing

1шт.

13

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT, oil filler

1шт.
