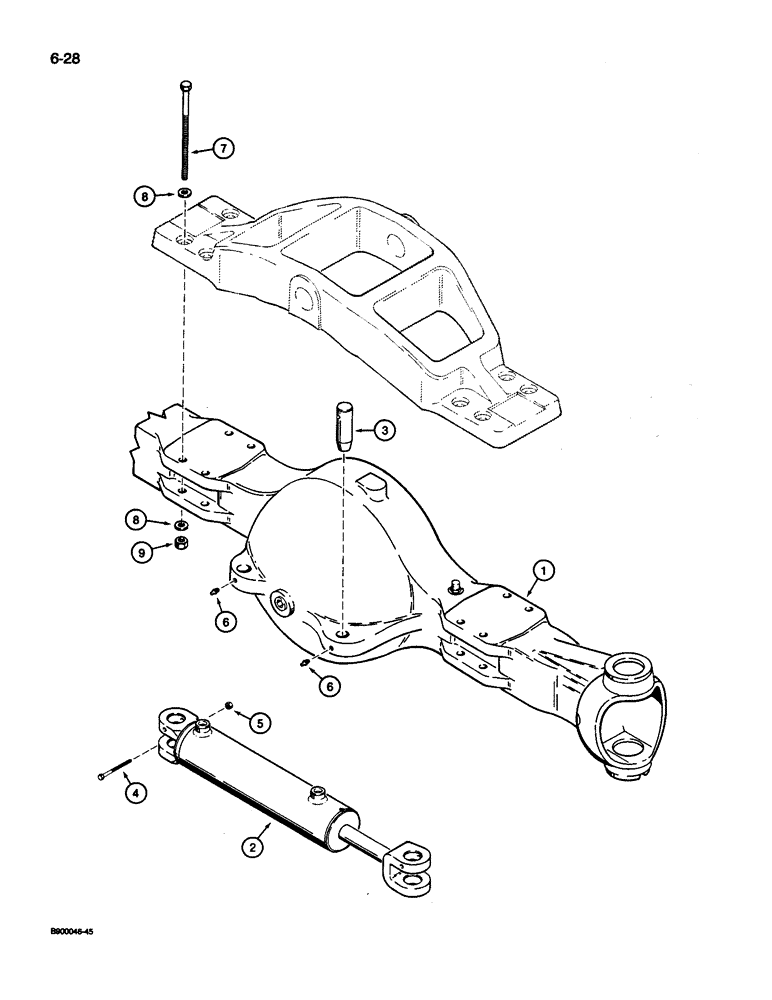

Запчасти Case 1085C (6-28) - FRONT STEERING AXLE MOUNTING (06) - POWER TRAIN

1

S517957

AXLE

ASSEMBLY - front steering, parts list Figures: 6-30 through 6-38, and 7-2

1шт.

2

1978348C3

JACK BODY

CYLINDER ASSEMBLY - steering, parts list Figure: 5-28

2шт.

3

S243431

PIN

- cylinder

4шт.

4

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

4шт.

5

86625061

NUT,1/4"-20, GB

NUT - hex self-locking, 1/4 inch NC

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

7

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

8шт.

8

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special

16шт.

9

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

8шт.
