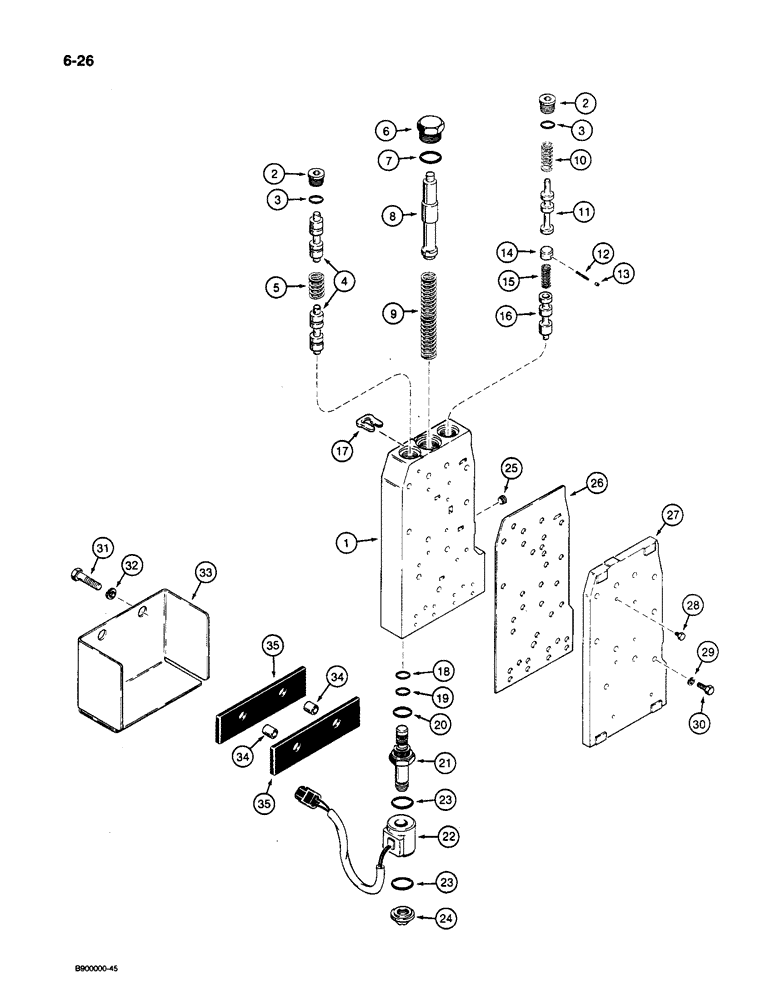

Запчасти Case 1085C (6-26) - TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 35 this figure, 1 - 42 figure 6-14, 1 - 39 figure 6-16, 1 - 40 figure 6-18, 1 - 37A figure 6-20, 1 - 30 figure 6-22, and 1 - 34 figure 6-24

1шт.

S301398

VALVE

ASSEMBLY - transmission control, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 3 Hex Soc, 3/4"-16 ORB

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

S301402

SPOOL

- forward and reverse

2шт.

5

S301403

SPRING

- spool position, forward and reverse

1шт.

6

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 7 Hex Hd, 7/8"-14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

E114401

SPOOL

- clutch cutout

1шт.

9

D87217

SPRING

- clutch cutout spool

1шт.

10

S301403

SPRING

- spool position, 3 speed, upper

1шт.

11

S301409

SPOOL

- 3 speed, upper

1шт.

12

S301123

SPLIT PIN/SAFETY PIN

PIN - roll, stop

1шт.

13

S301404

PLUG

- special, spool stop

1шт.

14

S301122

STOP

- spool, 3 speed

1шт.

15

S301403

SPRING

- range spool, lower

1шт.

16

S302123

SPOOL - range, lower

1шт.

17

E114397

STOP

- spool

1шт.

S301412

CARTRIDGE

VALVE ASSEMBLY - solenoid, Includes: Ref. 18 - 21

4шт.

18

S301025

STEERING COLUMN

O-RING - valve, small

1шт.

19

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- valve, medium

1шт.

20

S301407

O-RING

- valve, large

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - solenoid valve

1шт.

22

S300747

COIL

- solenoid

4шт.

23

238-7020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

4шт.

24

S300748

NUT

- special, valve

4шт.

25

444688

PLUG

- hex socket, 1/8 inch PT

1шт.

26

S301119

GASKET

- cover

1шт.

27

S301113

COVER ASSY

COVER - control valve

1шт.

28

221-660

PLUG,Hex Hd, 1/16"-27

- hex, 1/16 inch PT

8шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

31

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

S301410

COVER

- solenoid coil

1шт.

34

S301408

COVER

SPACER - cover

2шт.

35

S301411

ELECTRICAL WIRE

RETAINER - coil wire

2шт.
