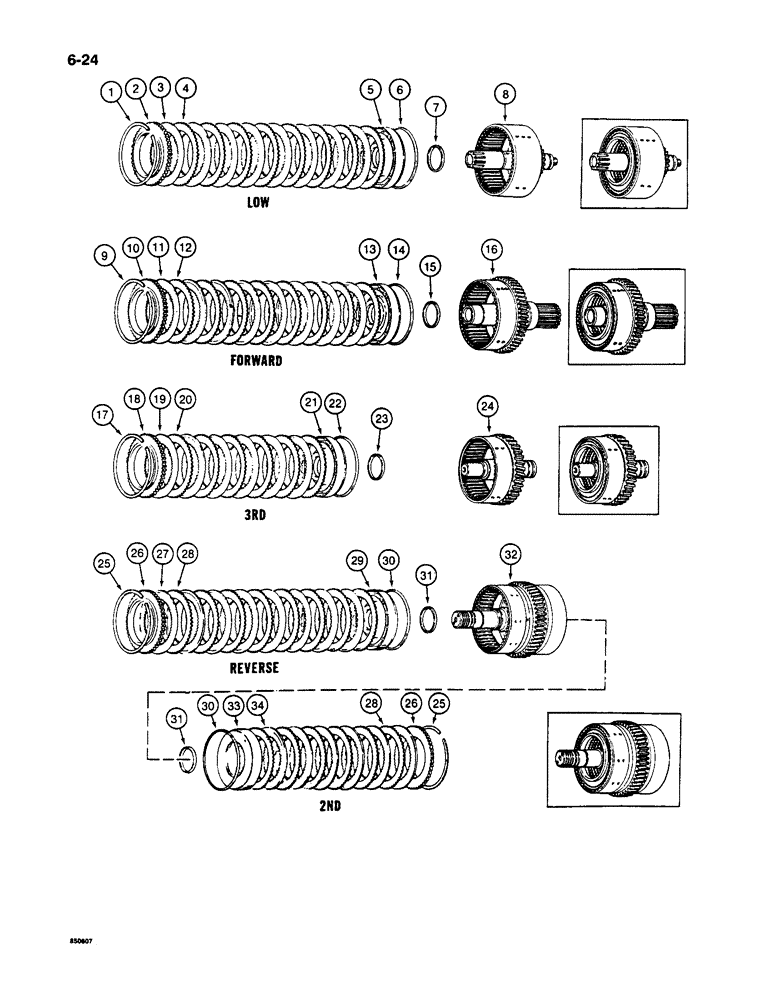

Запчасти Case 1085C (6-24) - TRANSMISSION, CLUTCHES (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 34 this figure, 1 - 42 figure 6-14, 1 - 39 figure 6-16, 1 - 40 figure 6-18, 1 - 37A figure 6-20, 1 - 30 figure 6-22, and 1 - 35 figure 6 - 26

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, Includes: Ref. 1 - 8

1шт.

1

E114380

RING, SNAP

RING - snap, backing plate

1шт.

2

E114381

PLATE

- pressure, clutch discs

1шт.

3

N7219

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

8шт.

5

E114384

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, OD

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, ID

1шт.

8

N7220

DRUM

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward, Includes: Ref. 9 - 16

1шт.

9

E114380

RING, SNAP

RING - snap, backing plate

1шт.

10

E114381

PLATE

- pressure, clutch discs

1шт.

11

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

12

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

8шт.

13

E114384

PISTON

- clutch

1шт.

14

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, OD

1шт.

15

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, ID

1шт.

16

S117879

DRUM

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, Includes: Ref. 17 - 24

1шт.

17

E114380

RING, SNAP

RING - snap, backing plate

1шт.

18

E114381

PLATE

- pressure, clutch discs

1шт.

19

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

6шт.

20

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

6шт.

21

E114392

PISTON

- clutch

1шт.

22

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, OD

1шт.

23

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, ID

1шт.

24

E114393

CLUTCH

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, Includes: Ref. 25 - 34

1шт.

25

E114380

RING, SNAP

RING - snap, backing plate

2шт.

26

E114381

PLATE

- pressure, clutch discs

2шт.

27

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

28

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

14шт.

29

E114384

PISTON

- clutch

1шт.

30

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, OD

2шт.

31

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, ID

2шт.

32

N13638

DRUM

HOUSING - clutch, with shaft

1шт.

33

E114392

PISTON

- clutch

1шт.

34

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

6шт.
