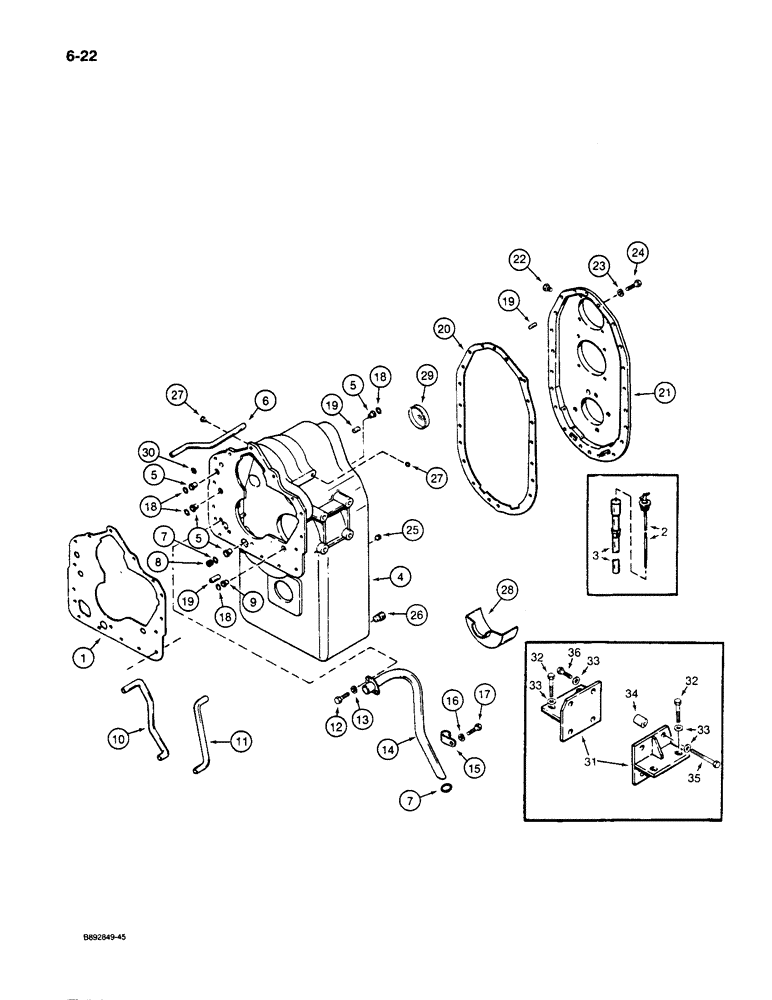

Запчасти Case 1085C (6-22) - TRANSMISSION, HOUSING ASSEMBLY, FRONT COVER, AND TRANSMISSION MOUNTING (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 30 this figure, 1 - 42 figure 6-14, 1 - 39 figure 6-16, 1 - 40 figure 6-18, 1 - 37A figure 6-20, 1 - 24 figure 6-24, and 1 - 35 figure 6-26

1шт.

1

D87221

GASKET

- transmission front cover

1шт.

2

E114324

DIPSTICK

- transmission oil level

1шт.

3

E114323

TUBE

- dipstick

1шт.

4

S239578

CASE ASSY.

HOUSING ASSEMBLY - transmission, Includes: Ref. 5 - 17

1шт.

5

A55734

SLEEVE

- tube

3шт.

6

N7146

TUBE,12.81" L

- housing

1шт.

7

N6595

O-RING

- third speed pressure plug and suction tube

2шт.

8

E114322

PLUG

- pressure, third speed

1шт.

9

D87207

SLEEVE

- tube

1шт.

10

E114321

TUBE

- third speed

1шт.

11

E114320

TUBE

- clutch lubrication

1шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

E114319

HYD TUBE,1.125" DIA. x 2" L

TUBE - suction

1шт.

15

A55741

CLAMP,1", 1/2" Bolt

- suction tube

1шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

17

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

1шт.

18

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- sleeve

4шт.

19

A17924

PIN

- dowel, housing

3шт.

20

E114316

GASKET

- rear cover

1шт.

21

D87246

COVER ASSY

COVER ASSEMBLY - rear, transmission, Includes: Ref. 22

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8 inch PT

1шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

20шт.

24

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

20шт.

25

221-1843

PLUG

- hex socket, 3/8 inch PT

1шт.

26

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - hex socket, 3/4 inch PT

2шт.

27

S117872

PLUG

- special, housing

2шт.

28

E114318

BAFFLE

- transmission oil

1шт.

29

E114336

PLUG

- bore

1шт.

30

E114251

O-RING

- clutch pressure tube

1шт.

31

S238523

BRACKET

- transmission mounting

2шт.

32

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

33

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- hardened

12шт.

34

S120927

SPACER

- mounting bracket, right-hand

4шт.

35

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch, right-hand

4шт.

36

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch, left-hand

4шт.
