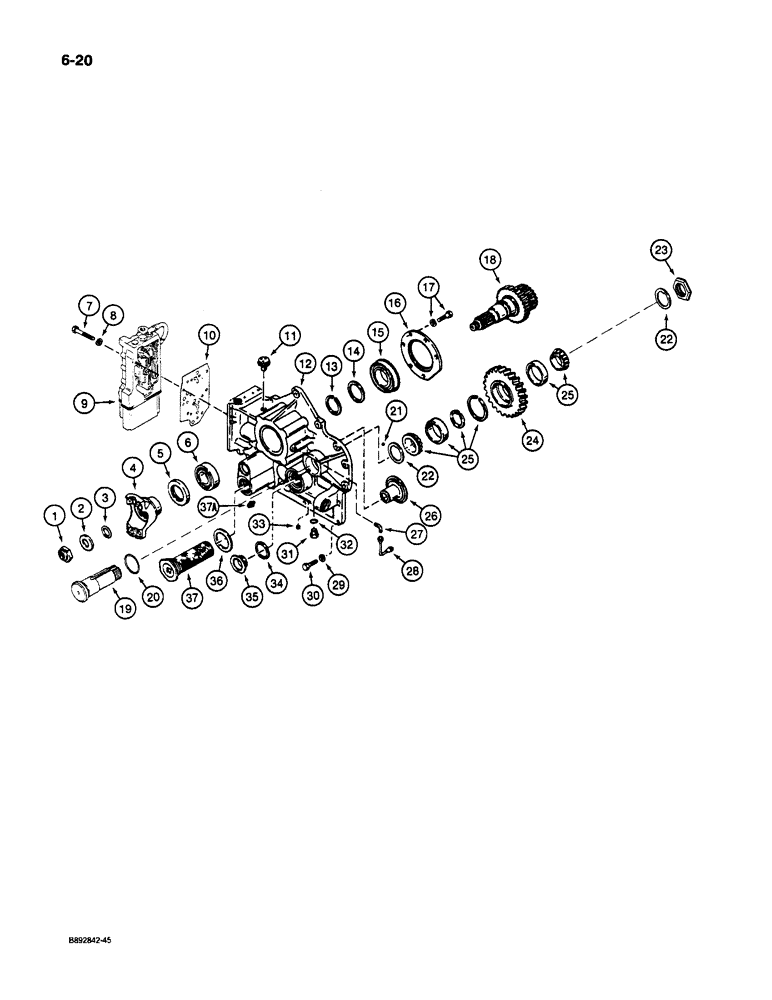

Запчасти Case 1085C (6-20) - TRANSMISSION, INPUT SHAFT, REVERSE IDLER, AND REAR COVER (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 37A this figure, 1 - 42 figure 6-14, 1 - 39 figure 6-16, 1 - 40 figure 6-18, 1 - 30 figure 6-22, 1 - 34 figure 6-24, and 1 - 35 figure 6-26

1шт.

1

A55863

LOCK NUT

- flange, special

1шт.

2

A17938

WASHER

- flange, special

1шт.

3

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

4

S301104

FLANGE

- input, driveshaft from torque converter

1шт.

5

S89592

OIL SEAL,53.98mm ID x 90.17mm OD x 12.7mm Thk

- oil, input flange

1шт.

6

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

- ball, input shaft

1шт.

7

S301405

SCREW

BOLT - hex, special

9шт.

8

492-11038

LOCK WASHER,3/8"

9шт.

9

S301398

VALVE

ASSEMBLY - control, transmission, parts list Figure: 6-26

1шт.

10

E114308

GASKET

- control valve

1шт.

11

N7134

BREATHER

- transmission and torque converter, see Figure: 6-10 for adapting parts

1шт.

12

S300099

COVER

- transmission, front

1шт.

13

S89668

RING

- snap, rear bearing

1шт.

14

S117859

WASHER

- special, rear bearing

1шт.

15

S117860

BALL BEARING,2.3622" ID x 4.3307" OD x 0.8661"

BEARING - ball, rear, input shaft

1шт.

16

S117861

PLATE

- rear bearing retaining

1шт.

17

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - special, includes lockwasher

6шт.

18

S117862

SHAFT ASSY.

SHAFT AND HUB - transmission input

1шт.

19

D142275

SHAFT

- reverse idler

1шт.

20

D27878

O-RING,1.609" ID x 1.887" OD

- idler shaft

1шт.

21

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25

1шт.

22

D142277

PLATE ASSY.

WASHER - thrust

2шт.

23

D142278

BEARING LOCK NUT

NUT - special

1шт.

24

N7155

GEAR

- idler, reverse

1шт.

25

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched set parts not serviced separately

1шт.

26

E114312

SLEEVE

- front cover, reverse and second clutch shaft

1шт.

27

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

28

S300100

TUBE,0.252" OD x 3.74, 2.11" L

- lubrication

1шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

30

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

31

214389

PLUG,3/4" - 16 ORB

Includes Ref. 32 Hex Hd, 3/4"-16 ORB

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

34

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- front cover

1шт.

35

L30038

PLUG

- special, front cover

1шт.

36

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- suction screen

1шт.

37

S117867

SCREEN

- suction

1шт.

37a

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.
