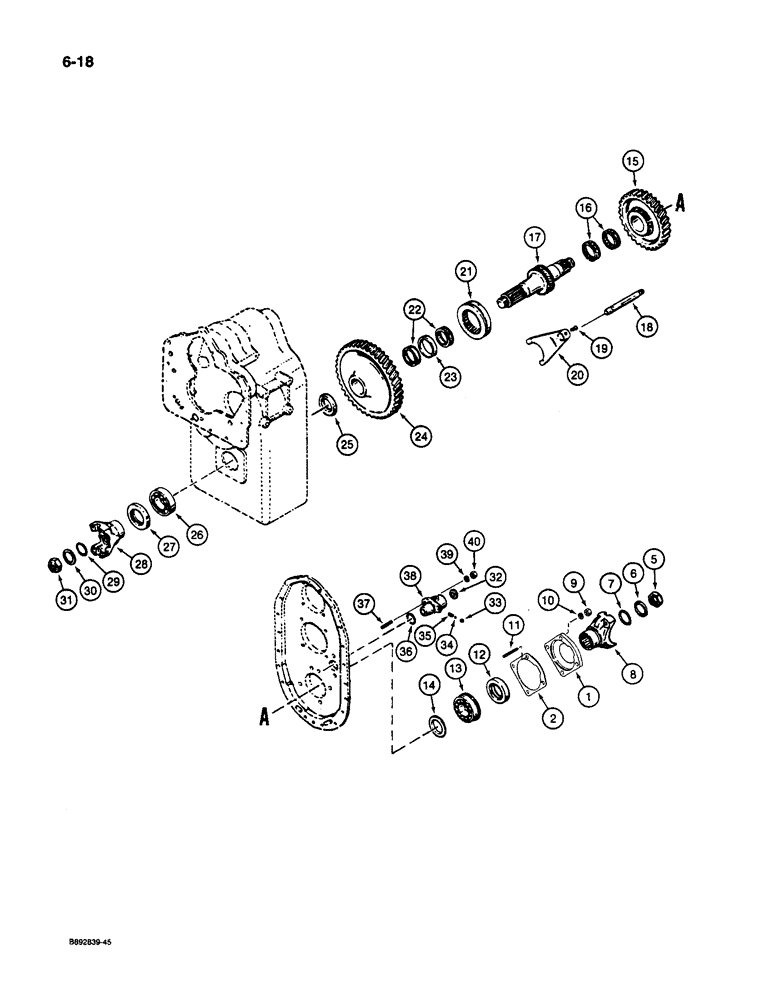

Запчасти Case 1085C (6-18) - TRANSMISSION, OUTPUT FLANGES AND HIGH-LOW SHIFT COMPONENTS (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 40 this figure, 1 - 42 figure 6-14, 1 - 39 figure 6-16, 1 - 37A figure 6-20, 1 - 30 figure 6-22, 1 - 34 figure 6-24, 1 - 35 figure 6 - 26

1шт.

1

N7207

BEARING CAP

RETAINER - bearing

1шт.

2

N7206

GASKET

- bearing retainer

1шт.

5

131-487

LOCK NUT,1 1/4"-18

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

6

A55828

WASHER

- special, flange

1шт.

7

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- flange

1шт.

8

S300024

FLANGE

- output, driveshaft to front axle

1шт.

9

E114371

NUT

- special, bearing retainer stud

4шт.

10

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

11

N7210

STUD

- output bearing retainer

4шт.

12

D87228

OIL SEAL

SEAL - oil, bearing

1шт.

13

D87243

BALL BEARING

BEARING - ball, output shaft, rear

1шт.

14

D87240

WASHER

- thrust, high range gear

1шт.

15

S301107

GEAR

- high range

1шт.

16

D87239

BEARING, ROLLER

BEARING - roller, output shaft, rear

2шт.

17

S301106

SHAFT

- output, transmission

1шт.

18

D87237

SHIFT RAIL

ROD - high-low shift

1шт.

19

A17958

LOCK SCREW,3/8" - 24 x 27/32"

SCREW - set, special, high-low shift rod

1шт.

20

S117898

SHIFTER FORK

FORK - high-low shift

1шт.

21

S117899

HUB

- shift

1шт.

22

D87239

BEARING, ROLLER

BEARING - ball, low gear

2шт.

23

D87238

SPACER

- bearing

1шт.

24

D87232

GEAR

- low range

1шт.

25

D87240

WASHER

- thrust, low range gear

1шт.

26

E114340

BALL BEARING

BEARING - ball, output shaft, front

1шт.

27

D77023

SEAL

- oil, output flange

1шт.

28

S300024

FLANGE

- output, driveshaft to rear axle

1шт.

29

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- flange

1шт.

30

A55828

WASHER

- special, flange

1шт.

31

131-487

LOCK NUT,1 1/4"-18

NUT - hex, self-locking, 1-1/4 inch NF

1шт.

32

N13104

OIL SEAL

SEAL - oil

1шт.

33

S117872

PLUG

- housing detent

1шт.

34

211-12

BALL,7/16 Dia

- 7/16 inch, grade 200, chrome alloy steel

1шт.

35

S89686

SPRING

- detent

1шт.

36

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- range shift housing

1шт.

37

S117901

STUD

- range shift rod housing

2шт.

38

S89684

SUPPORT

HOUSING - high-low shift rod

1шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
