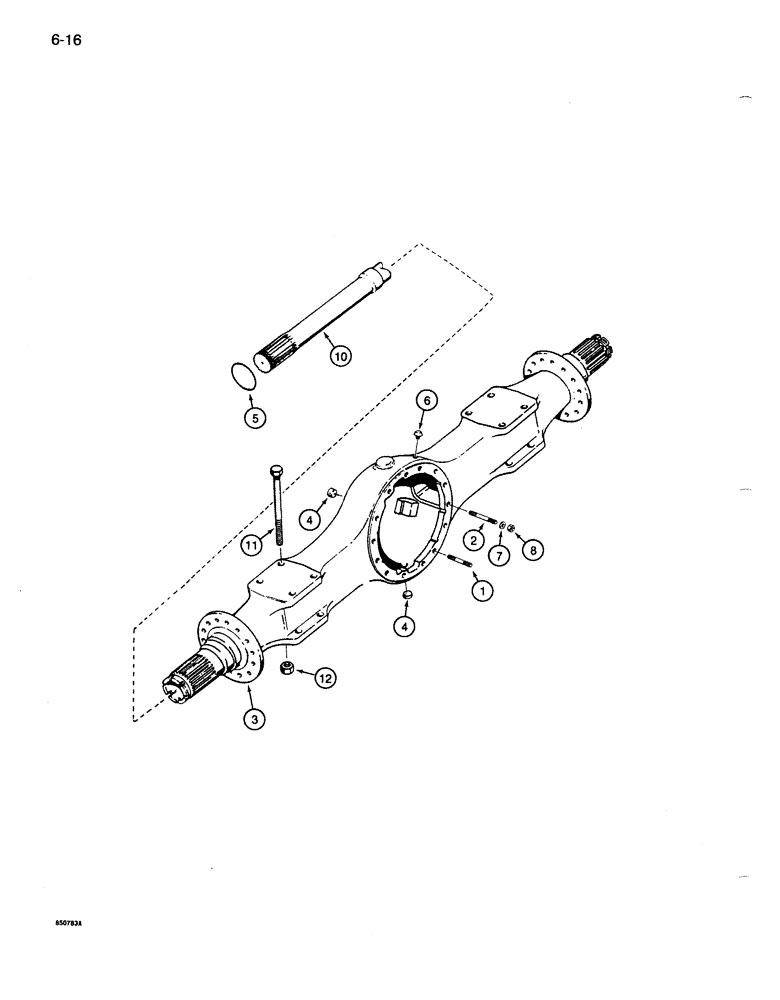

Запчасти Case 1085B (6-016) - REAR DRIVE AXLE, HOUSING AND MOUNTING PARTS (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - rear drive, see page 6-3 for axle identification

1шт.

S239054

SPOOL

HOUSING ASSEMBLY - rear drive axle, Includes: Ref. 1 - 5

1шт.

S117401

AXLE HOUSING

HOUSING ASSEMBLY - rear drive axle, Includes: Ref. 1 - 5

1шт.

1

S61909

STUD

- short

10шт.

2

A13130

STUD

- long

4шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - rear drive axle

1шт.

4

221-1847

PLUG

- hex socket head, 1-1/4 inch PT, drain and fill

2шт.

5

L36141

SLEEVE

SEAL - oil

2шт.

Description should be Wear Sleeve

1шт.

6

A12928

BREATHER

- oil

1шт.

7

L33864

WASHER

- flat

14шт.

8

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

14шт.

9

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, housing, not shown

1шт.

10

S113925

SHAFT

- drive axle

2шт.

11

13-16152

BOLT,Hex, 1" - 8 x 9-1/2", Gr 5

8шт.

12

131-82

NUT,1"-8

NUT - heavy hex, self-locking, 1 inch NC

8шт.
