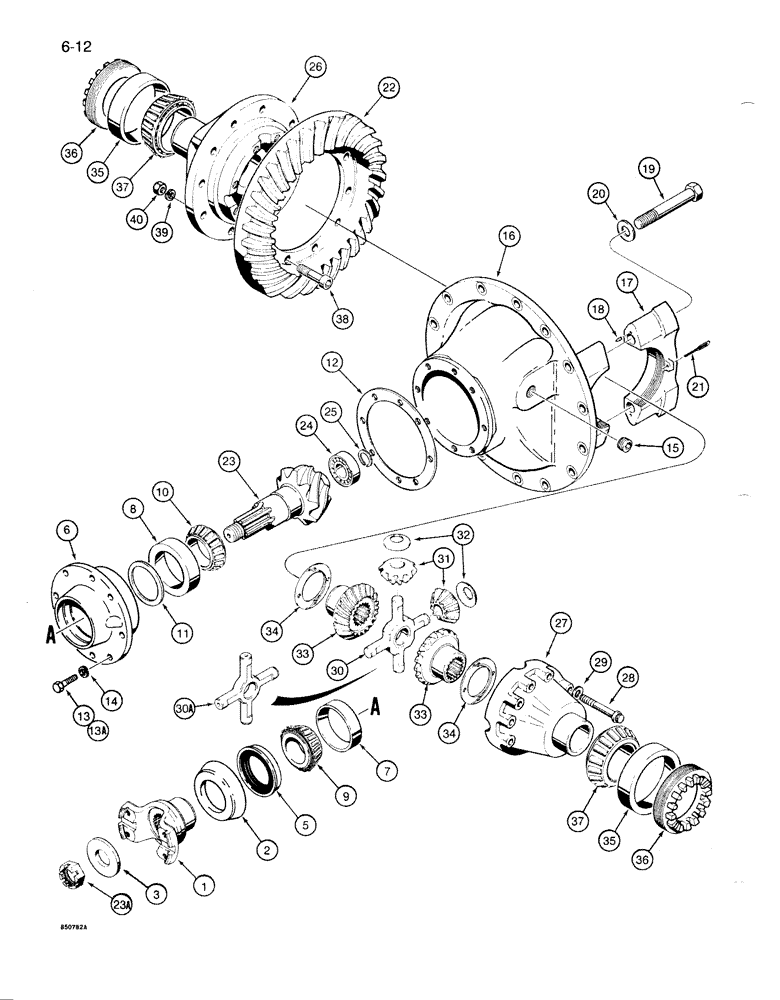

Запчасти Case 1085B (6-012) - FRONT STEERING AXLE, DIFFERENTIAL (06) - POWER TRAIN

S618902

CENTER AXLE

AXLE ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 40

1шт.

S619018

AXLE

ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 40

1шт.

S619554

AXLE

ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 40

1шт.

N13117

CARRIER

ASSEMBLY - differential, use with S619018 and S618902 axle assembly, Includes: Ref. 1 - 40

1шт.

S302024

CARRIER

ASSEMBLY - differential, use with S619554 axle assembly, Includes: Ref. 1 - 40

1шт.

S113923

YOKE

FLANGE ASSEMBLY - shaft, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE - shaft

1шт.

2

S113924

SLINGER

DEFLECTOR - flange

1шт.

3

S113914

WASHER

- flat

1шт.

5

N9921

SEAL

- oil, pinion

1шт.

N9922

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

7

A138433

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

8

A9840

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

9

S113921

TAPERED BEARING

BEARING - tapered roller, outer

1шт.

10

L30032

ROLLER BEARING

- tapered roller, inner

1шт.

11

D82755

SHIM,.234" Thk

Spacer - bearing (5.944 mm) .234" Thk

1шт.

11

D82756

SHIM,.235" Thk

Spacer - bearing (5.969 mm) .235" Thk

1шт.

11

D82757

SHIM,.236" Thk

Spacer - bearing (5.994 mm) .236" Thk

1шт.

11

D82758

SHIM,.237" Thk

Spacer - bearing (6.020 mm) .237" Thk

1шт.

11

D82759

SHIM,.238" Thk

Spacer - bearing (6.045 mm) .238" Thk

1шт.

11

D82760

SHIM,.239" Thk

Spacer - bearing (6.071 mm) .239" Thk

1шт.

11

D82761

SHIM,.240" Thk

Spacer - bearing (6.096 mm) .240" Thk

1шт.

11

N8611

SPACER

- bearing, .242 inch (6.147 mm) thick

1шт.

11

N8612

SPACER

- bearing, .244 inch (6.198 mm) thick

1шт.

11

N8613

SPACER

- bearing, .246 inch (6.248 mm) thick

1шт.

11

D82762

SHIM,.247" Thk

Spacer - bearing (6.274 mm) .247" Thk

1шт.

11

D82763

SHIM,.254" Thk

Spacer - bearing (6.452 mm) .254" Thk

1шт.

11

D82764

SHIM,.261" Thk

Spacer - bearing (6.629 mm) .261" Thk

1шт.

11

D82765

SEAL

SPACER - bearing, .268 inch (6.807 mm) thick

1шт.

11

D82766

SHIM,.275" Thk

Spacer - bearing (6.985 mm) .275" Thk

1шт.

11

D82767

SHIM,.282" Thk

Spacer - bearing (7.163 mm) .282" Thk

1шт.

11

D82768

SHIM,.289" Thk

Spacer - bearing (7.341 mm) .289" Thk

1шт.

11

D82769

SHIM,.296" Thk

Spacer - bearing (7.518 mm) .296" Thk

1шт.

12

A12958

SHIM,.003" Thk

(.0762 mm) .003" Thk

1шт.

12

A12956

SHIM,.005" Thk

(.1270 mm) .005" Thk

1шт.

12

A12957

SHIM,.010" Thk

(.2540 mm) .010" Thk

1шт.

13

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex, 7/16 NC x 1-1/2 inch, grade 8, use on N13117 carrier assembly

8шт.

13a

26-726

SCREW,Hex, 7/16" - 14 x 1 5/8", Gr 8

BOLT - hex, 7/16 NC x 1-5/8 inch, grade 8, use on N302024 carrier

8шт.

14

D47367

WASHER

- flat

8шт.

15

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.

S236215

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

17

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

18

A15443

DOWEL

PIN - adjustment

4шт.

19

L34037

BOLT

- bearing cap

4шт.

20

A16783

WASHER

- bearing cap bolt

4шт.

21

L30029

PIN

- cotter, cap

2шт.

S114874

GEAR

ASSEMBLY - ring and pinion, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - pinion

1шт.

23a

S113912

LOCK NUT

- hex, slotted

1шт.

24

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - tapered roller

1шт.

25

A15442

LOCK

RING - lock

1шт.

S236220

CASE

CAGE ASSEMBLY - differential, use with N13117 carrier assembly, Includes: Ref. 26 - 29

1шт.

S302025

CAGE

ASSEMBLY - differential, use with S302024 carrier assembly, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

28

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch

16шт.

29

D47366

WASHER

- flat

16шт.

30

A25143

SPIDER ASSY.

SHAFT - cross, use with N13117 carrier assembly

1шт.

30a

N8605

SPIDER ASSY.

SHAFT - cross, use with S302024 carrier assembly

1шт.

31

A25131

PINION

GEAR - pinion, differential

4шт.

32

A25140

WASHER

- thrust, pinion gear

4шт.

33

S113907

GEAR

- side, differential

2шт.

34

A25142

WASHER

- thrust, side gear

2шт.

35

L33303

BEARING CUP

CUP - tapered roller bearing, outer

2шт.

36

S113916

NUT

RING - bearing adjustment

2шт.

37

L33297

ROLLER BEARING

BEARING - tapered roller

2шт.

38

S113908

BOLT

BOLT -, Serial Range: gear-cage

12шт.

39

L30737

WASHER

- flat

12шт.

40

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8 inch NF

12шт.
