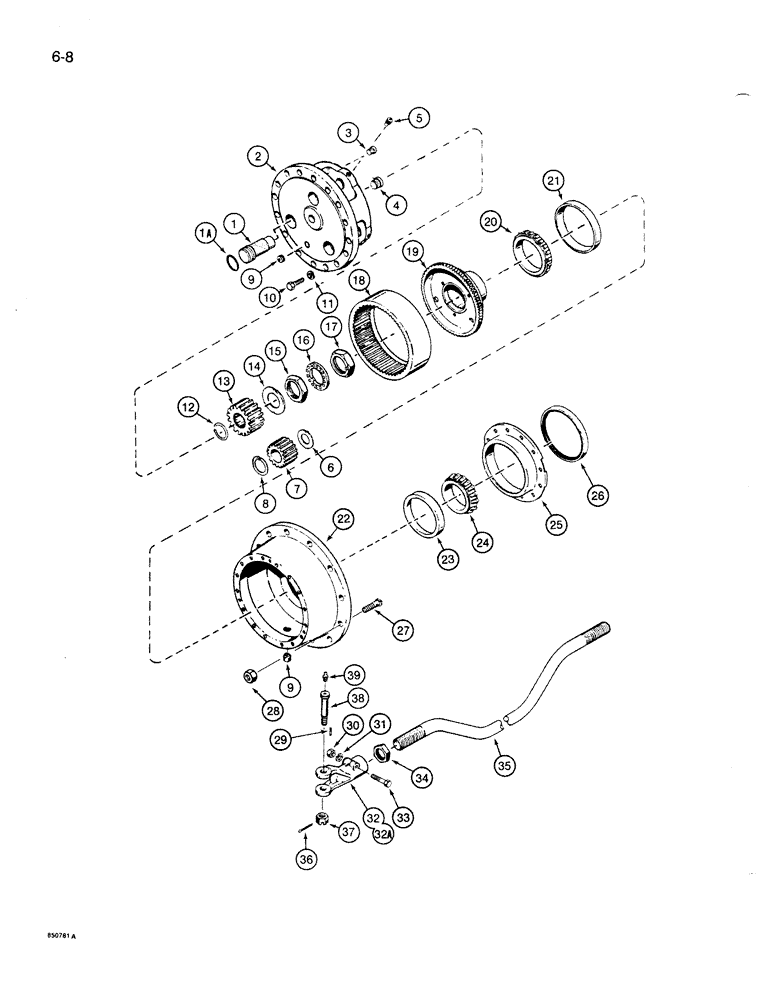

Запчасти Case 1085B (6-008) - FRONT STEERING AXLE, PLANETARY AND TIE ROD (06) - POWER TRAIN

S618902

CENTER AXLE

AXLE ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 28

1шт.

S619018

AXLE

ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 28

1шт.

S619554

AXLE

ASSEMBLY - front steering, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 28

1шт.

NSS

NOT SOLD SEPARAT

SHAFT AND HUB ASSEMBLY - front steering axle, also includes parts on Fig. 6-006 and 6-008, Includes: Ref. 1 - 28

1шт.

1

N8570

SHAFT

- pinion gear

6шт.

1a

N8569

O-RING,1.674" ID x 1.88" OD x 0.103"

- shaft

6шт.

S117211

SPIDER ASSY.

CARRIER ASSEMBLY - planetary, front steering axle, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

3

L36117

BUTTON

PLUG - thrust

3шт.

4

A12980

BUTTON

PLUG - axle thrust

1шт.

5

N7103

STUD

SCREW - set, housing

6шт.

6

A19886

WASHER

- thrust, inner

6шт.

7

A14977

GEAR

- pinion, planetary

6шт.

8

A14967

WASHER

- thrust, outer

6шт.

9

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket, 3/4 inch PT, magnetic

4шт.

10

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

11

D47366

WASHER

- lock

32шт.

12

A14969

RING, SNAP

RING - snap

2шт.

13

A14976

GEAR

- sun, planetary

2шт.

14

S117214

WASHER

- thrust

2шт.

15

S117216

NUT

- outer

2шт.

16

S117215

WASHER

- wheel bearing

2шт.

17

S117217

NUT

- inner

2шт.

18

L36134

GEAR WHEEL

GEAR - ring, 52 teeth, planetary

2шт.

19

N60036

RING

HUB - ring gear

2шт.

20

A14960

BEARING

- tapered roller, outer

2шт.

S58913

HUB ASSY.

HUB ASSEMBLY - front axle, Includes: Ref. 21 - 23

2шт.

21

A14961

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

22

NSS

NOT SOLD SEPARAT

HUB - wheel attaching, used with 345-84 sealant, Ref. 40

1шт.

23

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - tapered roller bearing

1шт.

24

L30841

CONE

BEARING -tapered roller, inner

2шт.

25

L30577

RETAINER

SLINGER - oil (Replaces A15418)

2шт.

Should be L30577, the oil slinger is not pictured, should be between Ref. 22 and 23.

1шт.

26

L30577

RETAINER

SEAL - oil

2шт.

27

N14152

BOLT

STUD - wheel

24шт.

28

A12522

WHEEL NUT

- wheel

24шт.

29

A13111

AXLE PIN

PIN - lock

2шт.

30

131-225

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF

2шт.

31

L36067

WASHER

- flat, special

2шт.

32

S112420

YOKE

- rod end, 12 threads per inch

1шт.

32a

S120616

FORK

YOKE - rod end, 16 threads per inch

1шт.

33

28-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 8

- hex, 3/4 NF x 3-1/2 inch, grade 8

2шт.

34

A13115

LOCK NUT

NUT - tie rod

2шт.

35

L30612

ROD

- tie, steering

1шт.

36

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

37

A13110

NUT

- tie rod bolt

2шт.

38

A13107

BOLT

- tie rod

2шт.

39

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

2шт.

40

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, hub to housing, not shown

1шт.
