Запчасти Case 1085B (6-002) - FRONT AND REAR AXLES (06) - POWER TRAIN

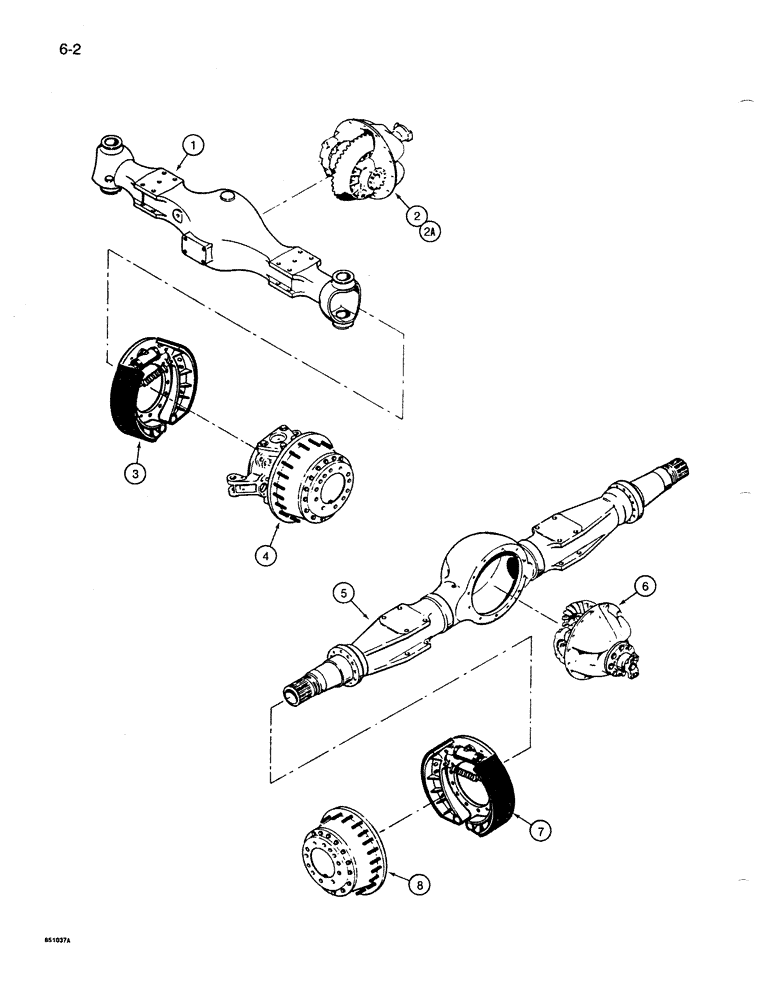

Схема запчастей Case 1085B - (6-002) - FRONT AND REAR AXLES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

S618902

CENTER AXLE

AXLE ASSEMBLY - front steering, identification number PSM 824-H245, S618902 stamped on plate, Includes: Ref. 1 - 4

1шт.

S619018

AXLE

ASSEMBLY - front steering, identification number PSM 824-H255, S619018 stamped on plate, Includes: Ref. 1 - 4

1шт.

S619554

AXLE

ASSEMBLY - front steering, identification number PSM 824-H266, S619554 stamped on plate, Includes: Ref. 1 - 4

1шт.

1

S231204

HOUSING

- axle, parts list Fig. 6-004, front steering

1шт.

2

N13117

CARRIER

DIFFERENTIAL ASSEMBLY - axle, use on S618902 and S619018 axle assemblies, parts list Fig. 6-012, front steering

1шт.

2a

S302024

CARRIER

DIFFERENTIAL ASSEMBLY - axle, use on S619554 axle assembly, parts list Fig. 6-012, front steering

1шт.

3

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - front axle, parts list page 7-49, steering

2шт.

4

NSS

NOT SOLD SEPARAT

HUBS AND SHAFTS - front axle, parts list page 6-7 through 6-11, steering

1шт.

S514426

CENTER AXLE

AXLE ASSEMBLY - rear drive, with No-Spin differential, identification number PRM672-H207, Includes: Ref. 5 - 8

1шт.

5

S239054

SPOOL

HOUSING - axle, parts list Fig. 6-016, rear drive with no-spin differential identification number PRM 672-H207

1шт.

6

S238144

DIFFERENTIAL

ASSEMBLY - axle, No-Spin, parts list Fig. 6-020 through 6-024, rear drive with no-spin differential identification number PRM 672-H207

1шт.

7

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - rear axle, parts list page 7-51, drive with no-spin differential identification number PRM 672-H207

2шт.

8

S239055

HUB ASSY.

HUBS AND SHAFTS - rear axle, parts list Fig. 6-018, with no-spin differential identification number PRM 672-H207

1шт.

S514427

AXLE

ASSEMBLY - rear drive, without No-Spin differential, identification number PRM 672-H205, Includes: Ref. 5 - 8

1шт.

5

S239054

SPOOL

HOUSING - axle, parts list Fig. 6-016, rear drive without no-spin differential identification number PRM 672-H205

1шт.

6

S238136

CARRIER

DIFFERENTIAL ASSEMBLY - axle, without No-Spin, parts list Fig. 6-026 through 6-030, identification number PRM 672-H205

1шт.

7

NSS

NOT SOLD SEPARAT

BRAKE ASSEMBLY - rear axle, parts list page 7-51, drive without no-spin differential identification number PRM 672-H205

2шт.

8

S239055

HUB ASSY.

HUBS AND SHAFTS - rear axle, parts list Fig. 6-018, drive without no-spin differential identification number PRM 672-205

1шт.
