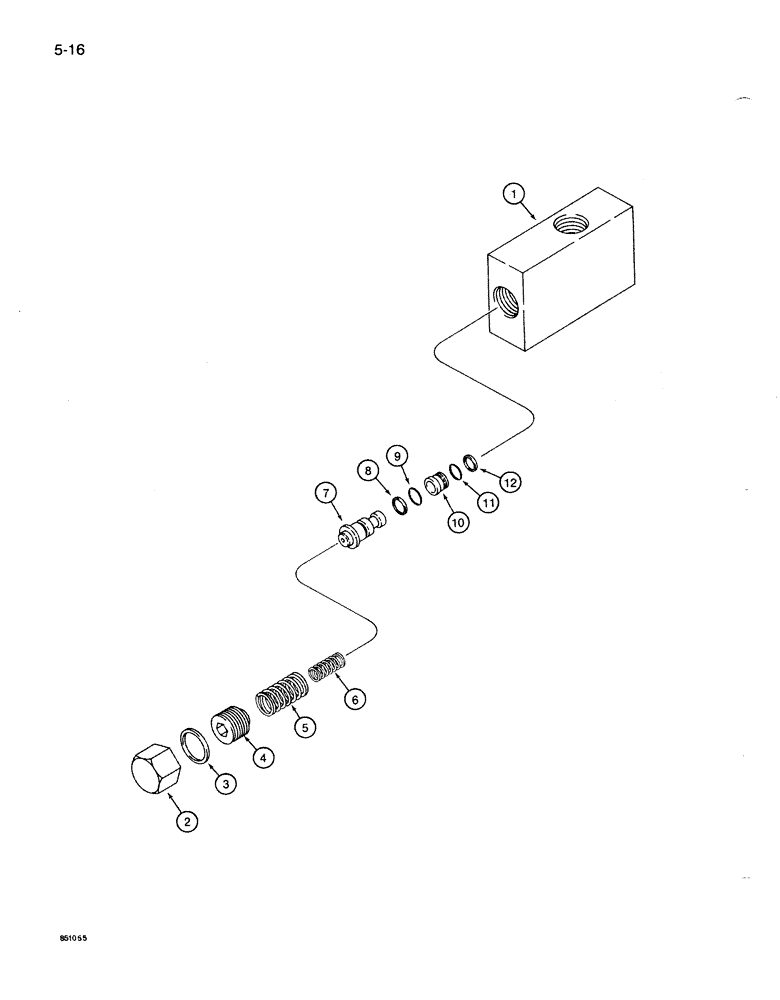

Запчасти Case 1085B (5-016) - STEERING RELIEF VALVE (05) - STEERING

S222933

VALVE

ASSEMBLY - relief, steering, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - relief valve cartridge

1шт.

3

S118310

GASKET

- cartridge cap

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

8

S6900

BACK-UP RING

RING - backup, piston, leather

1шт.

9

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- piston

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - piston

1шт.

11

W13170

O-RING,0.395" ID x 0.04" Width

- seat

1шт.

12

S99879

RING

- backup, seat

1шт.
