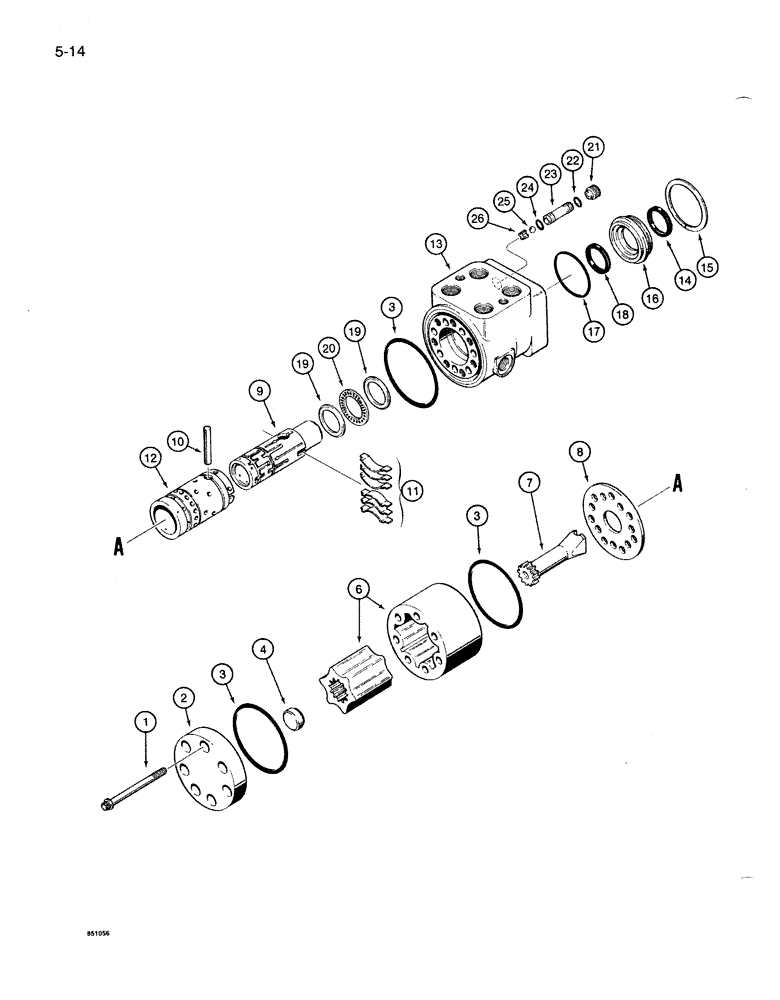

Запчасти Case 1085B (5-014) - STEERING CONTROL VALVE (05) - STEERING

S237326

CONTROL

VALVE ASSEMBLY - steering control, models without auxiliary steering

1шт.

S239378

HYDRAULIC VALVE

VALVE ASSEMBLY - steering control, models with auxiliary steering, Includes: Ref. 1 - 26

1шт.

1

166-533

12 PT SCREW,Flg, 5/16" - 24 x 1 7/8", Gr 8

BOLT - 12 point, 5/16 NF x 1-7/8 inch, grade 8

7шт.

2

D82809

COVER

CAP - end

1шт.

3

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- housing

3шт.

Part of Seal Kit, P/N D82802

1шт.

4

S110168

SPACER

- internal

1шт.

5

RESERVED

1шт.

6

S115518

GEROTOR

SET - gear, drive shaft

1шт.

7

L30878

DRIVE SHAFT

SHAFT - drive, gear set

1шт.

8

S113037

PLATE

- spacer

1шт.

S115521

HOUSING

AND SPOOL ASSEMBLY - S237326 control valve, Includes: Ref. 9 - 13

1шт.

N60338

HOUSING

AND SPOOL ASSEMBLY - S239378 control valve, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - sleeve

1шт.

10

L30888

PIN

- sleeve

1шт.

11

N14250

KIT

SPRING - spool, replaces L30889 spring

6шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE - spacer plate

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - steering control valve

1шт.

14

A28211

OIL SEAL

- bushing

1шт.

Part of Seal Kit, P/N D82802

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

S110170

BUSHING

- quad ring

1шт.

17

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- housing

1шт.

Part of Seal Kit, P/N D82802

1шт.

18

S62820

RING

- quad, bushing

1шт.

Part of Seal Kit, P/N D82802

1шт.

19

D82804

RACE

WASHER - thrust, spool

2шт.

20

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Thrust washers

1шт.

21

D82805

SET SCREW

SCREW - set, housing

1шт.

22

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- spool

1шт.

Part of Seal Kit, P/N D82802

1шт.

23

D82806

VALVE SEAT

SPOOL - ball retainer

1шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

- spool, 7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit, P/N D82802

1шт.

25

211-9

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

26

L35368

RETAINER

- ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 3, 14, 17, 22, and 24

1шт.
