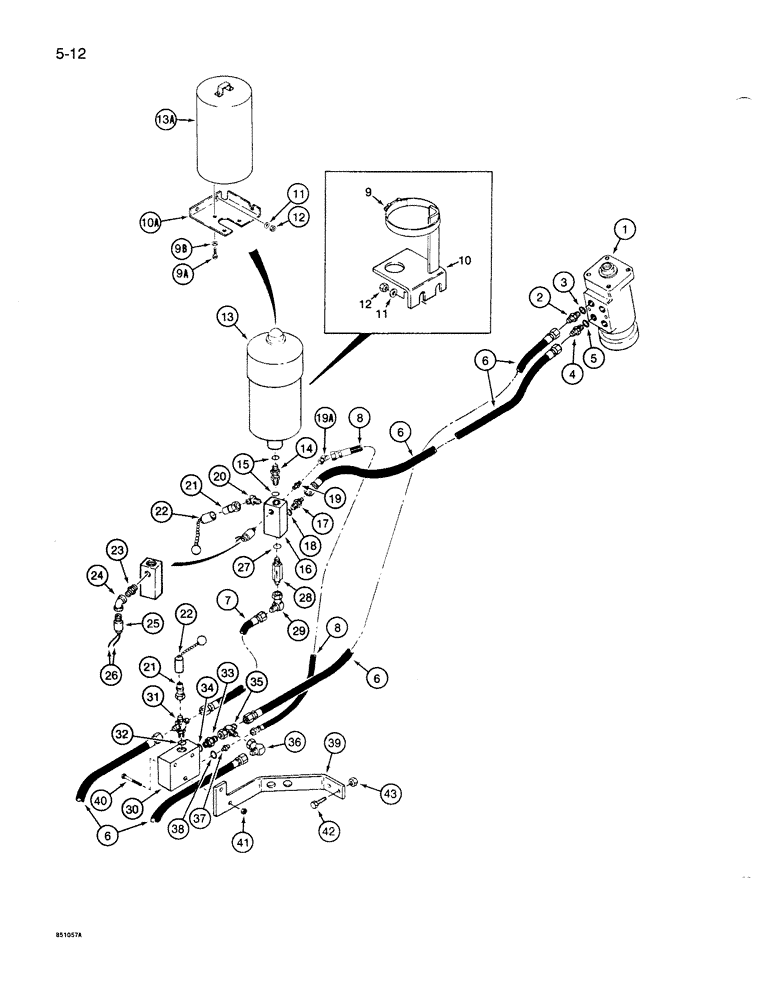

Запчасти Case 1085B (5-012) - AUXILIARY STEERING CIRCUIT (05) - STEERING

1

S239378

HYDRAULIC VALVE

VALVE ASSEMBLY - control, steering column, parts list Fig. 5-014

1шт.

2

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

S235935

HOSE ASSY.

HOSE - 78 inch (1981 mm) long

4шт.

7

S11226

HOSE

- 20 inch (508 mm) long

1шт.

8

S77121

HOSE

- 20 inch (508 mm) long

1шт.

9

214-366

CLAMP,#172, 6.25"-6.56", T-Bolt

- accumulator, used with Ref. 10 bracket

2шт.

9a

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch

3шт.

Part of Accumulator Replacement, P/N S517672

1шт.

9b

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

Part of Accumulator Replacement, P/N S517672

1шт.

10

S515336

BRACKET

- accumulator, used with item 9 clamp

1шт.

10a

S243419

BRACKET

- accumulator

1шт.

Part of Accumulator Replacement, P/N S517672

1шт.

11

S95569

WASHER

- flat, special, hardened, plated

3шт.

12

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

3шт.

13

S239376

RESERVOIR

ACCUMULATOR - auxiliary steering system, replaced by S517672 kit, see below

1шт.

13a

S517626

ACCUMULATOR

- auxiliary steering system, if used

1шт.

Part of Accumulator Replacement, P/N S517672

1шт.

14

S118719

FITTING

CONNECTOR - straight, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

S515543

MANIFOLD

- auxiliary steering lines

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

19a

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 deg, 9/16-18 inch flare x swivel straight thread

1шт.

20

S118830

ELBOW

- 45 degree, 1/4 inch PT

1шт.

21

S206607

DISC

COUPLING - quick disconnect, male, test

2шт.

22

S206608

CAP

- dust, with chain

2шт.

23

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

- straight, 1/8 PT x 1/4 inch female PT

1шт.

24

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

25

S241963

SWITCH

- steering pressure

1шт.

26

S242336

CABLE

WIRE - pressure switch

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

S78084

VALVE

ASSEMBLY - check, parts list Fig. 5-022

1шт.

29

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

30

S240580

VALVE

ASSEMBLY - unloading, parts list Fig. 5-018

1шт.

31

S118718

CROSS

- top port, Includes: Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

36

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

37

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 38

1шт.

38

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

39

S240171

BRACKET

- hose

1шт.

40

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

41

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

42

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

43

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

S517672

KIT

- accumulator replacement, Includes: Ref. 9A, 9B, 10A, and 13A and 8-76120 instruction sheet, for service to replace S239376 accumulator

1шт.
