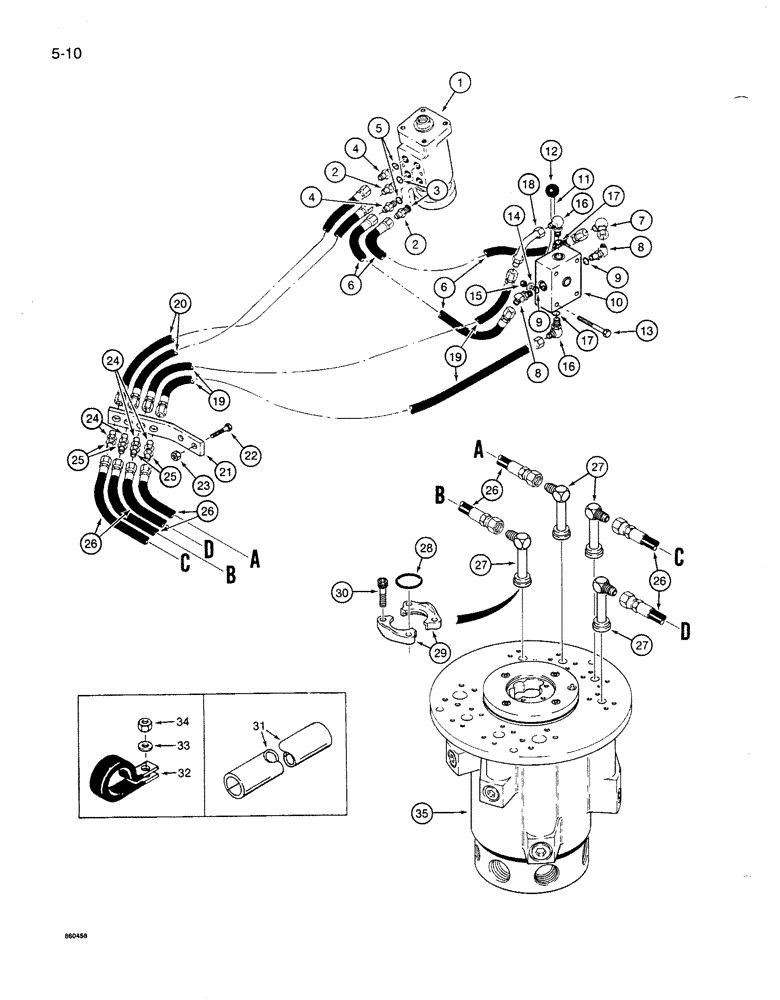

Запчасти Case 1085B (5-010) - STEERING HYD. CIRCUIT,STEERING CNTRL. VALVE TO SWIVEL UNITS W/SPLIT FLANGE TUBE PORTS ON HYD. SWIVEL (05) - STEERING

1

S237326

CONTROL

VALVE ASSEMBLY - control, steering column, models without auxiliary steering, parts list Fig. 5-014

1шт.

1

S239378

HYDRAULIC VALVE

VALVE ASSEMBLY - control, steering column, models with auxiliary steering, parts list Fig. 5-014

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

S11230

HOSE

- 28 inch (711 mm) long, control valve to steering reversing valve

2шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

S239555

VALVE

- steering reversing

1шт.

11

S240213

HANDLE

LEVER - steering reversing valve

1шт.

11a

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Handle, not shown 1/8" x 1", Slotted

1шт.

12

A61683

BUTTON

KNOB - lever

1шт.

13

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

14

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref.17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

S240207

TUBE ASSY.,0.5" OD x 3.58, 4" L

TUBE - top port

1шт.

19

S11231

HOSE ASSY.

HOSE - 68 inch (1727 mm) long, steering reversing, Serial Range: valve-bracket

2шт.

20

S235935

HOSE ASSY.

HOSE - 78 inch (1981 mm) long, steering control, Serial Range: valve-bracket

2шт.

21

S240212

BRACKET

- bulkhead fittings

1шт.

22

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

23

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

24

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

25

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

26

S11229

HOSE ASSY.

HOSE - 49 inch (1245 mm) long, to upper swivel ports 4, 5, 6 and 7

4шт.

27

S242764

TUBE,0.75" OD x 4" L

- special, at ports on swivel housing

4шт.

28

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- tube flange to housing

4шт.

29

A16961

FLANGE

CLAMP - split flange, Serial Range: tube-housing

8шт.

30

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex socket head, 3/8 NC x 1-1/4 inch

16шт.

31

S119802

GUARD - split, used on metal edge to protect hoses, 11 inch (279 mm) long, cut from S118481 bulk roll, see below

3шт.

For special parts used on models with auxiliary steering, see Fig. 5-012.

1шт.

32

S106968

CLAMP

- mounts hose to rear of floorplate

1шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

34

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

35

S956936

PIVOT

SWIVEL ASSEMBLY - hydraulic, 8 port, parts list Fig. 8-092

1шт.

S118481

PACKAGE

GUARD - bulk roll, 1 inch (25 mm) ID x 60 inch (1524 mm) long

1шт.

For special parts used on models with auxiliary steering, see Fig. 5-012.

1шт.
