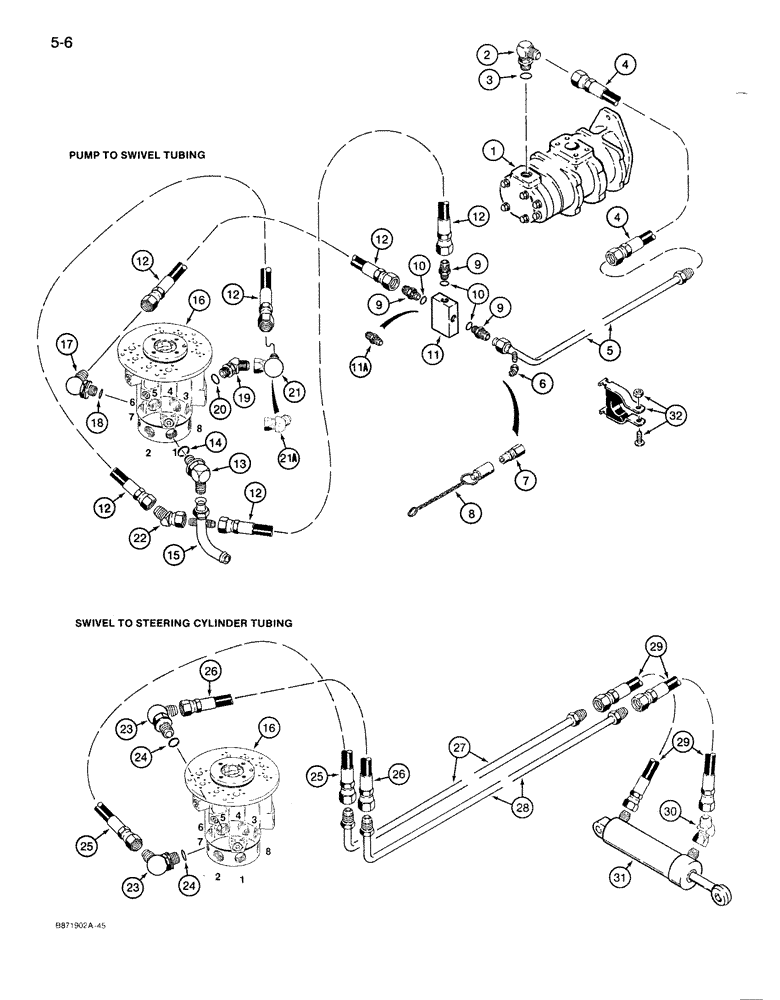

Запчасти Case 1085B (5-006) - STEERING HYD. CIRCUIT, PUMP TO SWIVEL TO STEERING CYL. UNITS W/SPLIT FLANGE PORTS ON HYD. SWIVEL (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - tandem, see Fig. 8-062 and 8-064 for correct pump

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

S76155

HOSE

- 28 inch (711 mm) long, from pump

1шт.

5

S242351

TUBE ASSY.,75" OD x 46.34, 7.25" L

TUBE - from pump

1шт.

6

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

45°, 1/4"-18 Female x 1/4"-18 Male

1шт.

7

S206607

DISC

PLUG - male, test

1шт.

8

S206608

CAP

- dust, with chain

1шт.

9

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 10

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

S222933

VALVE

- relief, steering circuit, if used, parts list Fig. 5-016

1шт.

11a

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare, used to connect hose to tube when steering circuit relief valve is not used

1шт.

12

S76155

HOSE

- 28 inch (711 mm) long

2-3шт.

13

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adj O-ring boss, Includes: Ref. 14

1шт.

14

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-1/2 inch OD tube

1шт.

15

S238583

TUBE,1.5" OD x 5.5, 8.68" L

- drain, see Fig. 8-012, reference number 17

1шт.

16

S956936

PIVOT

SWIVEL ASSEMBLY - parts list Fig. 8-092

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, to swivel port 6, Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, to swivel port 4, Includes: Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel flare, no longer used, order 218-5175 (Ref. 21A)

1шт.

21a

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

1шт.

22

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, to swivel ports 5 and 7, Incl. Ref. 24

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

S400834

HOSE

- 37-1/2 inch (953 mm) long

1шт.

26

S76155

HOSE

- 28 inch (711 mm) long

1шт.

27

S241819

TUBE ASSY.,0.75" OD x 69, 6" L

TUBE - to closed end of cylinder

1шт.

28

S241818

TUBE ASSY.,0.75" OD x 72, 6" L

TUBE - to rod end of cylinder

1шт.

29

S76155

HOSE

- 28 inch (711 mm), Serial Range: long,-cylinder

2шт.

30

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 deg, 1-1/16-12 inch flare x swivel str thread

1шт.

31

S615780

CYLINDER

ASSEMBLY - steering, parts list Fig. 5-020

1шт.

32

S97491

CLAMP

- tube

6шт.
