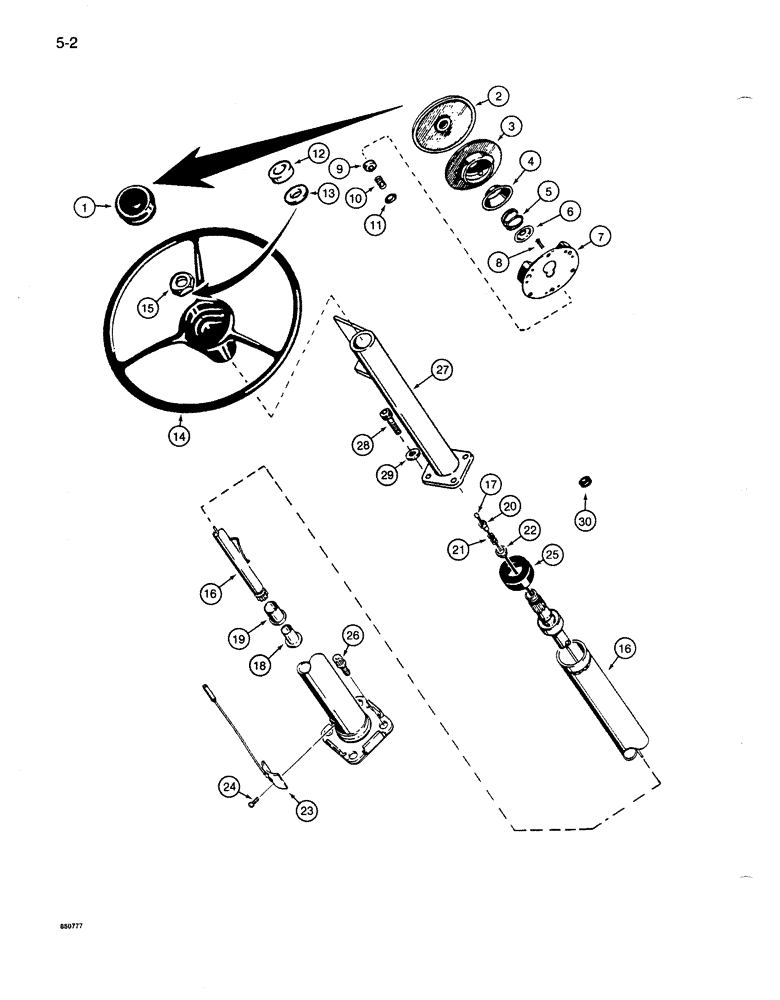

Запчасти Case 1085B (5-002) - STEERING COLUMN (05) - STEERING

1

A16843

BUTTON

ASSEMBLY - horn, Includes: Ref. 2 - 11

1шт.

2

A13088

CAP

COVER - horn button

1шт.

3

A13089

BUTTON

- horn

1шт.

4

A13092

CAP

CUP - contact

1шт.

5

A13091

SPRING

- horn button

1шт.

6

A13090

CAP

- contact

1шт.

7

N9013

PLATE

- horn

1шт.

8

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- drive, round head, No. 10 x 5/8 inch

3шт.

9

A13058

FERRULE

INSULATOR - terminal

1шт.

10

A13059

SPRING

- insulator

1шт.

11

A13057

CUP ASSY.

RETAINER - spring

1шт.

12

L60175

ADAPTER

- horn button

1шт.

13

195-2099

WASHER,1 1/64" x 2" x .049"

- flat, 1-1/64 x 2 x 3/64 inch, adapter to steering wheel

1шт.

14

A65544

STEERING WHEEL

- Tractor

1шт.

15

L33715

JAM NUT

- steering wheel retaining

1шт.

S238868

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

COLUMN - with shaft, steering

1шт.

17

N60346

ELECTRICAL WIRE

TERMINAL - with wire, steering column, replaces D82800 terminal

1шт.

18

S63470

INSULATOR

- plastic ring

1шт.

19

S63469

RING

- contact

1шт.

20

S63454

CONTACT

INSULATOR - terminal

1шт.

21

S63458

CONTACT

SPRING - insulator

1шт.

22

S63467

WASHER

RETAINER - spring

1шт.

S109356

BRUSH, COMMUTATOR

KIT - insulator and brush

1шт.

NSS

NOT SOLD SEPARAT

PACKAGE - grease, not shown

1шт.

23

NSS

NOT SOLD SEPARAT

INSULATOR - with brush, steering column

1шт.

24

187-1116

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/4 inch

2шт.

25

S115351

CAP

SEAL - steering column

1шт.

26

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - 12 point, 3/8 NC x 3/4 inch, grade 8, used for shipping purposes, see items 28 and 29

2шт.

27

S515444

SUPPORT

- steering column

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

S69667

GROMMET,5/16" ID x 3/4" Groove Dia

- horn wire

1шт.
