Запчасти Case 1085B (4-078) - WINDSHIELD WASHER, USED WITH STANDARD CAB ONLY (04) - ELECTRICAL SYSTEMS

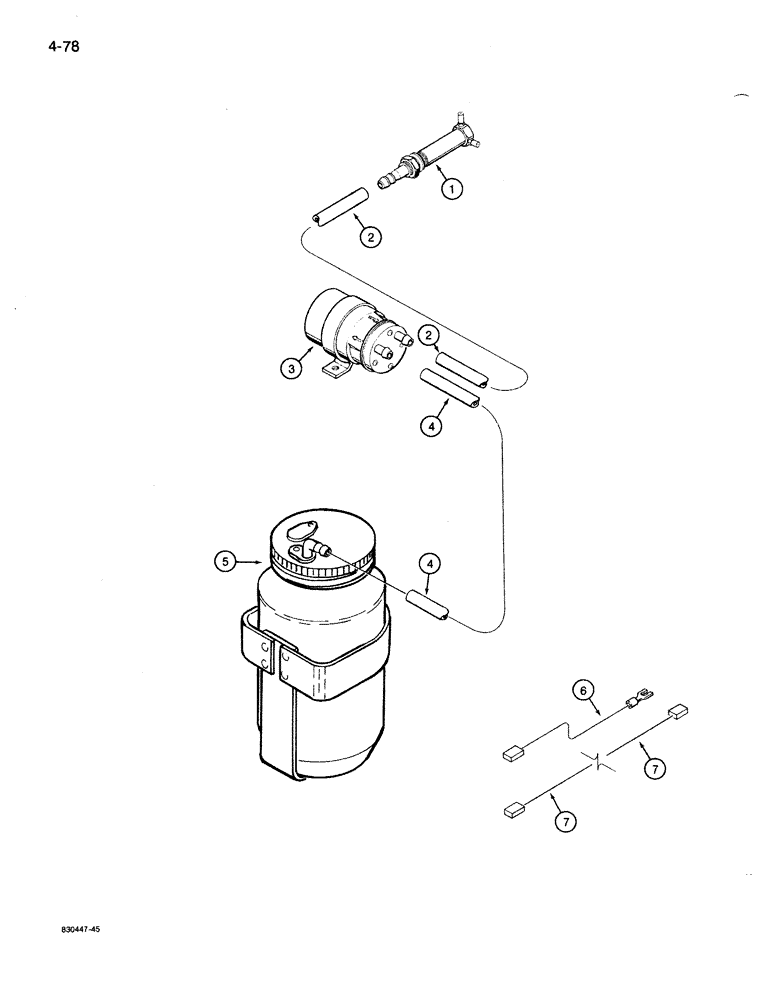

Схема запчастей Case 1085B - (4-078) - WINDSHIELD WASHER, USED WITH STANDARD CAB ONLY (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

S117715

NOZZLE INJECTION

NOZZLE - windshield washer

1шт.

2

S117557

TUBE,10" L

- pump to nozzle

1шт.

3

S117698

PUMP

- windshield washer

1шт.

4

S117556

TUBE,0.25" ID x 73" L

- reservoir to pump

1шт.

5

S515124

WASHER

RESERVOIR - windshield washer

1шт.

6

S118706

HARNESS

WIRE - ground

1шт.

7

S118704

HARNESS

WIRE - windshield washer

1шт.

Выбрано товаров: 7
