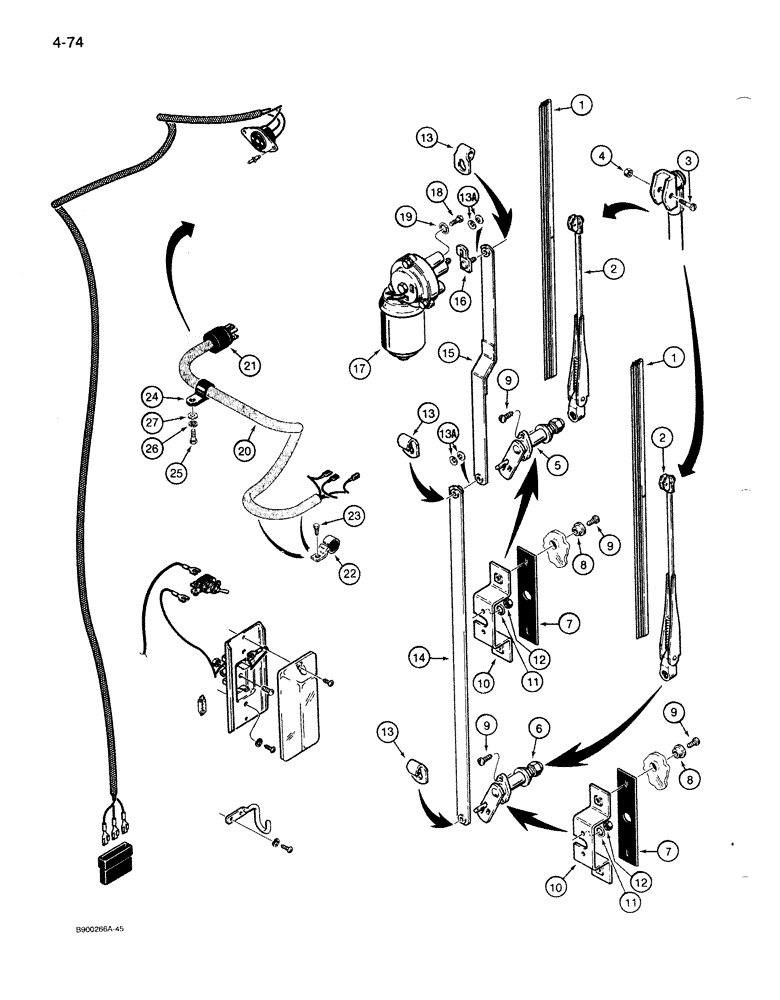

Запчасти Case 1085B (4-074) - WINDSHIELD WIPER AND DOME LAMP, USED WITH STANDARD CAB (04) - ELECTRICAL SYSTEMS

1

N13102

WIPER BLADE

BLADE - wiper arm, 20 inch (508 mm) long

2шт.

S241559

WIPER ARM

ARM ASSEMBLY - windshield wiper, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

ARM - windshield wiper

1шт.

3

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister head, No. 5 NC x 1/2 inch

1шт.

4

131-502

LOCK NUT,#5-40

NUT - light hex, self-locking, No. 5 NC

1шт.

5

S516458

SHAFT

- pivot, upper, replaced by S518003 shaft, Ref. 5A

1шт.

If any one of the Refs. is to be replaced, all Refs. 5A, 6A and 16A must be replaced at the same time.

1шт.

5a

S518003

SHAFT ASSY.

SHAFT - pivot, upper, not shown

1шт.

6

S516847

PIVOT ASSY.

SHAFT - pivot, lower, replaced by S518004 shaft, Ref. 6A

1шт.

If any one of the Refs. is to be replaced, all Refs. 5A, 6A and 16A must be replaced at the same time.

1шт.

6a

S518004

SHAFT ASSY.

SHAFT - pivot, lower, not shown

1шт.

7

S218046

GASKET

- rubber, Serial Range: bracket-glass

2шт.

8

N13091

BUSHING

- nylon, bracket mounting, replaces rubber bushing used on some models

4шт.

9

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

8шт.

10

S241525

BRACKET

- mounting, wiper shaft

2шт.

11

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

13

S240639

CLIP

-, Serial Range: arm-shaft

3шт.

13a

193-96

LOCK WASHER,3/8"

WASHER - spring, 3/8 inch, use 2 in each location to replace single lock washer used in production, if used

4шт.

14

S241524

LINK

- connecting, upper to lower shaft, used prior to cab SN 334940

1шт.

14

N13070

UPPER LINK

LINK - connecting, upper to lower shaft, used on cab SN 334940 and after

1шт.

15

S241523

LINK

- connecting, upper shaft to motor, used prior to cab SN 334940

1шт.

15

N13071

LINK ASSY.

LINK - connecting, upper shaft to motor, used on cab SN 334940 and after

1шт.

16

A36091

ARM

- drive, motor to link, replaced by S121118 arm, Ref. 16A

1шт.

If any one of the Refs. is to be replaced, all Refs. 5A, 6A and 16A must be replaced at the same time.

1шт.

16a

S121118

ARM ASSY.

ARM - drive, motor to link, not shown

1шт.

17

S118443

WIPER

MOTOR - wiper, 24 volt

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

3шт.

19

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

3шт.

20

S242085

HARNESS

- wiring, wiper, Includes: Ref. 21

1шт.

21

S120373

PLUG

- male

1шт.

22

214-1202

CLAMP

- windshield wiper, Serial Range: harness-windshield

2шт.

23

276-2056

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

2шт.

24

S64985

CLAMP

- cab roof

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch, continued on next Fig.

1шт.
